WISE CONTROL

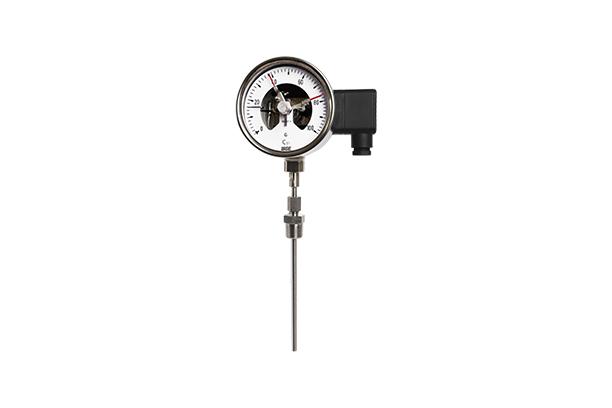

Euro Gauge Electrical Contact Type Bimetal Temperature Gauge

Model

Series

Temperature Gauge•Switch•Recorder

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

Service intended

Contact type temperature gauge is installed with electric contact actuated by pointer. It provides the function which electrical circuit can be opened or closed by manual set point. It is applicable where signal is required (Audible or visual alarm) for control of resistance or any other application with auxiliary relay and contact.

Nominal diameter	100 mm
Accuracy	±2.0 % of full scale
Temperature element	Coiled bimetal
Working range	Maximum scale value

Standard features

Location of stem	Bottom connection, surface, case mounting
Case	304SS
Cover	304SS Bayonet type
Window	Safety glass Polycarbonate
Dial	White aluminium with black graduations
Contacts	Maximum voltage : 250 V AC Contact rating : AC 220 V, 0.25 A DC 100 V, 0.5 A With max. no of contact : 2 sets per gauge
Pointer	Black painted aluminium alloy
Stem out diameter	6.0, 6.4, 8.0 and 10.0 mm diameter 304SS, 316SS and 316L SS Max. Insertion length : 2,000 mm
Stem, process connection	⅜", ½", ¾" PT or NPT G1/2B, G3/4B
Option	Special accuracy, ±1.0 % of full scale
