Dry Running - Oil Free - Contact Free Design
: Simple Modular Construction
: Air cooled & Direct Driven
: Low maintenance - No wear
: High Efficiency - Continuous Duty
Applications
Packaging, CNC Routing, Wood Works, Pneumatic Conveying, Holding & Lifting, Pick and Place, Medical & Lab., Plastics Industries, Central Vacuum Systems
Safety : CE certified (DOC)
GENERAL DESCRIPTION

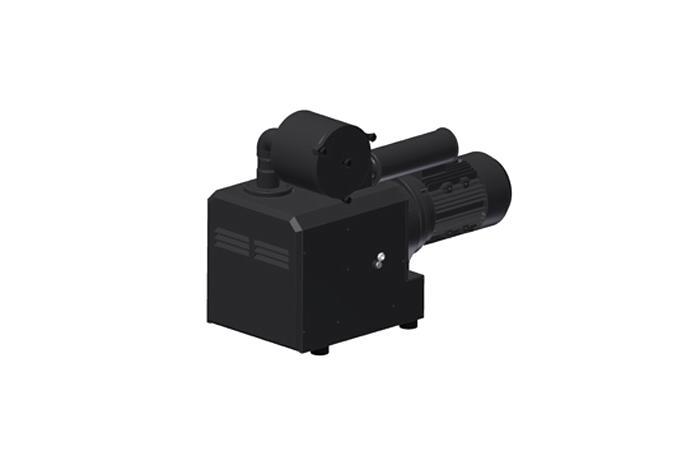

The PCX Series pumps are dry contact-less vacuum pumps with modular constructions consisting of compartments: pumping and gear chambers are separated by using labyrinth seals., As two claws rotate in opposite directions, the air will be sucked in the pumping chamber, compressed and discharged under pressure. In gear chamber, two gears for synchronizing of claws rotation will be placed with appropriate oil lubrication. A built-in anti-suck back valve installed in inlet flange will prevent the air from flowing back into the vacuum chamber when the pump is shut down. The pumps are directly driven by a flanged motor via a coupling.
Specifications
| Model | PCX 405 | PCX 515 | |||||||
| M3/Hour | 60Hz | 480 | 600 | ||||||
| 50Hz | 400 | 500 | |||||||
| Press. Conti, Bar | 60Hz | 0.6 | 1.2 | 1.6 | 2 | 0.8 | - | 1.6 | 2 |
| 50Hz | 0.8 | 1.4 | 1.8 | 2 | 0.8 | 1.2 | 1.6 | 2 | |
| Kw | 60Hz | 13 | 18 | 22 | 26 | 18 | - | 26 | 36 |
| 50Hz | 11 | 15 | 18.5 | 22 | 15 | 18.5 | 22 | 30 | |
| BPM-60/50Hz | RPM | 3450 .2550 | |||||||
| Voltage, Available | V | 208~230/460V, 220~240 / 380~420V, 400/690V | |||||||
| Inlet/Outlet Conn. | **BSP(G) | 3" | |||||||
Performance Curve
