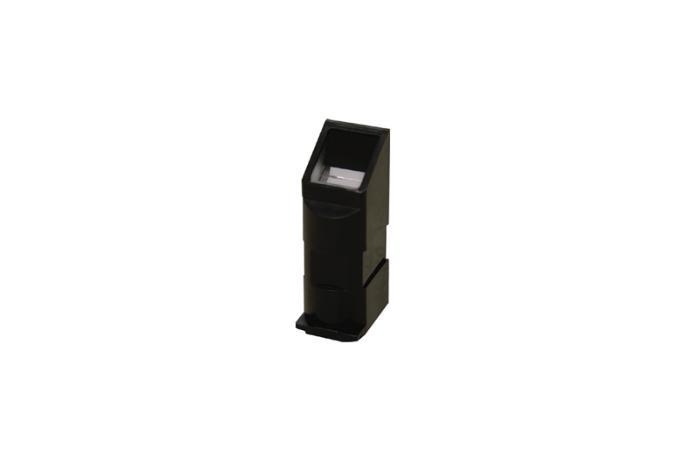

product Image
USB Fingerprint Sensors
Model Name
SDU04P
Series
Biometrics
Data
-
Manufacturer information
provider logo
Woo Kyung Optics

Fire control equipment, Panoramic telescope, Telescope, Elbow telescopes, Optical fingerprint recognition equipment and more

Problem with product info?
Update request
Manufacturer
Woo Kyung Optics
Brand
-
SKU
28205
Product Name
USB Fingerprint Sensors
Model Name
SDU04P
Size
-
Weight
-
Product Details

SDU04P

SecuGen Hamsters are the industry's most accurate, rugged, and affordable USB fingerprint readers.
These high-performance, versatile readers feature advanced optical sensors engineered with patented SEIR™ technology to give you the highest quality in fingerprint biometrics.



Features

- Accurate, patented optical USB fingerprint sensor with 508 DPI resolution
- Auto-OnTM to automatically detect the presence of a finger when placed on the reader
- Smart CaptureTM for reliable scanning of dry, moist, aged, scarred and difficult-to-scan fingers
- Hardened optical glass platen that is scratch, impact, corrosion and electrostatic shock resistant
- Compact and ergonomic design works with any finger or thumb
- Supports BioAPI, INCITS 378-2004, and ISO 19794
- Supports SecuGen proprietary, 3rd party and MINEX Certified Template Extractor and Matcher algorithms
- Supports FIPS 201 and FBI Certified as "PIV Single Finger Capture Device"



Specification

Fingerprint Reader

Optic Module

SDU04P

Image Resolution

508 DPI

Image Size

258 x 336 pixels

Platen Size

16.1 mm x 18.2 mm

Sensing Area

12.9 mm x 16.8 mm

Image Grayscale

256 levels (8-bit)

Light Source

Red LED

LED Lifetime (typical)

60,000 hours

Imaging Speed (capture time)

0.2~0.8 seconds with Smart Capture

Electrical / Communication

Interface

USB 1.1 Full-Speed, USB 2.0 Hi-Speed

Supply Voltage

5 V DC (via USB)

Maximum Current

150mA

Physical

Dimensions (W x L x H)

27 x 40 x 73 mm (without stand)
53 x 73 x 84 mm (with stand)

Weight

100 g (without stand)
165 g (with stand)

Cable Length

1500 mm

Operating Temperature

-20o to +65o C

Operating Humidity

90% or less RH noncondensing

Other

Warranty

One year limited

Supported Standards

ANSI INCITS 378, BioAPI, FIPS 201,
ISO/IEC 19794-2, ISO/IEC 19794-4

Compliance

FCC, CE, RoHS, FBI PIV Single Finger, STQC

Supported Operating Systems

Windows7, Vista, XP, 2000, 9x
Windows Server 2008 R2, 2003
Android (HSDU04P), Java, Linux
