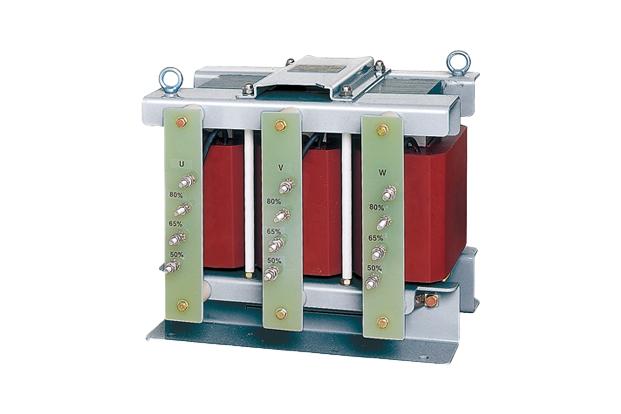

Low, High Volt. Motor Starting Reactor
Model Name
WYMS66-22
Series
Hi & Low Voltage Reactor
Data
Catalog-WOONYOUNG-Hi & Low Voltage Reactor-High voltage Motor starting reactor
Manufacturer information
provider logo
WOONYOUNGVarious electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
131562
Product Name
Low, High Volt. Motor Starting Reactor
Model Name
WYMS66-22, WYMS66-37, WYMS66-45, WYMS66-55, WYMS66-60, WYMS66-75, WYMS66-95, WYMS66-110, WYMS66-130, WYMS66-150, WYMS66-185, WYMS66-225, WYMS66-260, WYMS66-300, WYMS66-375, WYMS66-450, WYMS66-750, WYMS66-1100, WYMS66-1500
Size
-
Weight
-
Product Details
Model No WYMS66-22 WYMS66-37 WYMS66-45 WYMS66-55 WYMS66-60 WYMS66-75 WYMS66-95 WYMS66-110 WYMS66-130 WYMS66-150 WYMS66-185 WYMS66-225 WYMS66-260 WYMS66-300 WYMS66-375 WYMS66-450 WYMS66-750 WYMS66-1100 WYMS66-1500
TYPE 3Phase High voltage Motor starting reactor (3300/6600V)
Certification
Rating 3Ø-3.3 3Ø-6.6
Input 3Ø-3.3 3Ø-6.6
Output 30HP~1500HP
Capacity 22kVA~1500kVA



Specifications and Features

• Rating : 3Ø 3.3/6.6kV / 50/60 Hz

• Dielectric withstand : AC 3300V / 10,000V, 6600V / 16000V : 1min

• Insulation resistance : DC 500V / 100MΩ

• IP Class : IP20

• Sound level : Less than 65db

• Molding type

• Operating temp. : -20℃ ~ +40℃
