This product is manufactured by
WOONYOUNG

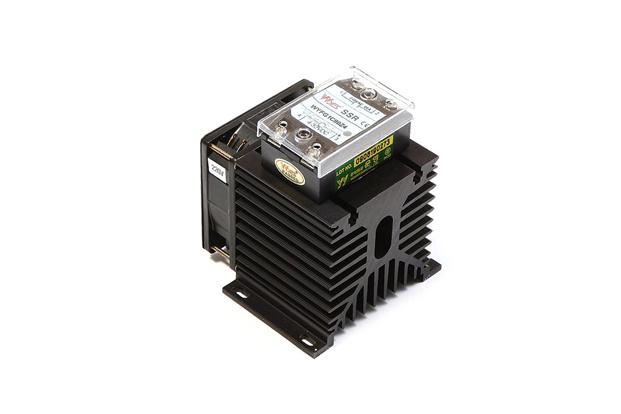

Solid State Relay (1P-FAN+SSR+Heat Sink)
Model Name
WYFNH1C30Z4
Data
WYFNGH1C30_60A.DWG
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
131678
Product Name
Solid State Relay (1P-FAN+SSR+Heat Sink)
Model Name
WYFNH1C30Z4, WYFNH1C40Z4, WYFNH1C50Z4, WYFNH1C60Z4, WYFNH1C80Z4, WYFNH1C30R4, WYFNH1C40R4, WYFNH1C50R4, WYFNH1C60R4, WYFNH1C80R4, WYFNH1C30Z40, WYFNH1C40Z40, WYFNH1C50Z40, WYFNH1C60Z40, WYFNH1C80Z40, WYFNH1C30R40, WYFNH1C40R40, WYFNH1C50R40, WYFNH1C60R40, WYFNH1C80R40
Size
-
Weight
-
Product Details
| Model No | WYFNH1C30Z4 WYFNH1C40Z4 WYFNH1C50Z4 WYFNH1C60Z4 WYFNH1C80Z4 WYFNH1C30R4 WYFNH1C40R4 WYFNH1C50R4 WYFNH1C60R4 WYFNH1C80R4 WYFNH1C30Z40 WYFNH1C40Z40 WYFNH1C50Z40 WYFNH1C60Z40 WYFNH1C80Z40 WYFNH1C30R40 WYFNH1C40R40 WYFNH1C50R40 WYFNH1C60R40 WYFNH1C80R40 |
|---|---|
| TYPE | WYNFH FAN type (SSR with self heat sink) |
| Certification | |
| Rating | 440VAC |
| Input | 4VDC~32VDC 90VAC~240VAC |
| Output | 440VAC |
| Capacity | 30A 40A 50A 60A 80A |
Specifications and Features
This single-phase integral SSR with self heat sink is a product with large capacity of AC90~480V, 30~80A. The SSR has designed self heat sink system without having to install any another heat sink and fans to ensure convenient use.
