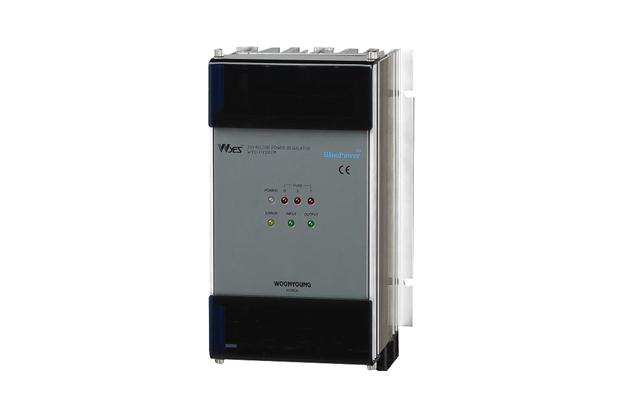

SVC Power Controller
Model Name
WYU-CH25TM
Series
SVC Power Controller
Data
Catalog-WOONYOUNG-SVC Power Controller
Manufacturer information
provider logo
WOONYOUNG

Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more

Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
131720
Product Name
SVC Power Controller
Model Name
WYU-CH25TM, WYU-CH40TM, WYU-CH60TM, WYU-CH80TM, WYU-CH100TM, WYU-CH150TM, WYU-CH200TM, WYU-CH250TM, WYU-CH300TM, WYU-CH350TM, WYU-CH400TM, WYU-CH500TM
Size
-
Weight
-
Product Details
Model No WYU-CH25TM WYU-CH40TM WYU-CH60TM WYU-CH80TM WYU-CH100TM WYU-CH150TM WYU-CH200TM WYU-CH250TM WYU-CH300TM WYU-CH350TM WYU-CH400TM WYU-CH500TM
TYPE CAP-TPR
Certification
Rating 380VAC 440VAC
Input 4VDC~32VDC 90VAC~260VAC
Output 380VAC 440VAC
Capacity 25A 40A 60A 80A 100A 150A 180A 200A 250A 300A 350A 400A 500A



Specifications and Features

• The fuse attached to the each power line prevents of damage the load or a condenser.

• It is planned to make switching transient, inrush current or voltage decrease markedly by zero voltage turn-on and zero current turn-off.

• when input line and fuse are disconnected, the output would be limited automatically for preventing the load safely.

• The fan control circuit is installed. Therefore it extends the fan life by operating on 56℃ of heat sinks and stops before 45℃.

• When it is over 80℃, Abnormal out contact will be operating and stop working by installing the circuit for overheating on heat sinks and SCR module.
