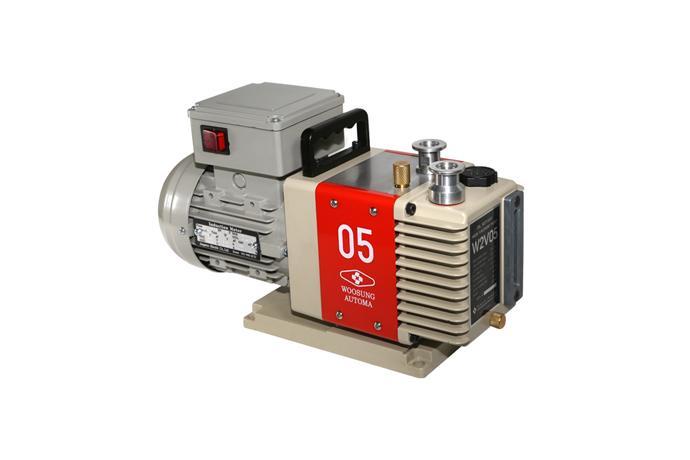

product Image
Rotary Vane Pump
Model Name
W2V05
Series
Rotary Vane Pumps
Data
Manual-WSA-Rotary Vane Pump-W2V05
Manufacturer information
provider logo
WSA

Vacuum pump manufacturer, Direct-coupled type oil rotary pump, Refrigerant pump, Pirani gauge and more

Problem with product info?
Update request
Manufacturer
WSA
Brand
-
SKU
30969
Product Name
Rotary Vane Pump
Model Name
W2V05
Size
-
Weight
-
Product Details

W2V05

As the smallest model in W2V Series, W2V05 shows the excellent degree of vacuum in a compact size with high durability reliable. The noise and vibration level is very low compared to the similar pumps of other companies. Ideal for research equipment and laboratory equipment requiring low noise such as leak detector. Easy to use and maintain with a simple structure.


Pumping Speed

50L/min

Ultimate Pressure

≤ 3X10-3 Torr

Motor Power

0.12kW(0.16hp)






Specifications

Pumping Speed

50ℓ/min

Ultimate Pressure

Gas Ballast Open

5X10 -2 Torr ( 6.7 Pa )

Gas Ballast Closed

≤3X10 -3 Torr ( 4.0 X 10 -1 Pa)

Power Input

Standard

220VAC 1Ф 50/60Hz

Option I

110VAC 1Ф 50/60Hz

Option II

Customer’s Request (Voltage, Frequency)

Full load Power

0.12kW(0.16hp)

Motor Speed

1,700 rpm

Inlet

Standard

NW16

Option I

NW25 + Hose Nipple : Ф12, Ф16, Ф26 OD for NW25

Option II

NW25 + PT Nipple :1/4″, 3/8″, 1/2″, 3/4″, 1″ for NW25

Option III

User Requested Type

Weight

14.2kg

Oil Capacity

200cc (0.2ℓ)

Ambient Operation Temp.

7~40°C / 45~104°F

Overall Dimension(mm)

120x373.5x200 (unit : mm)





Dimensions





Pumping Curve
