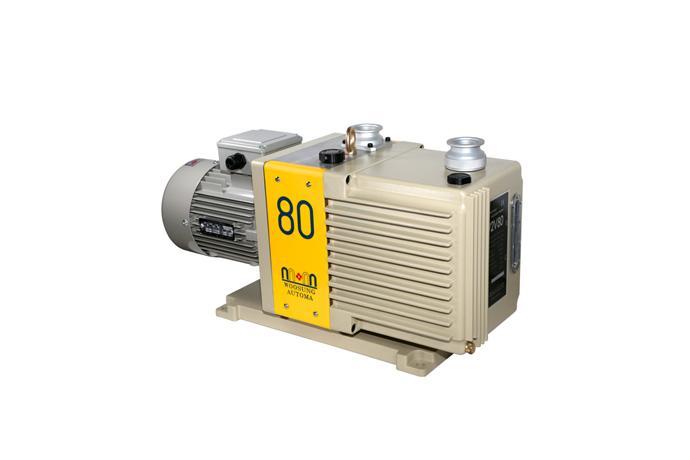

Rotary Vane Pump
Model Name
W2V80
Series
Rotary Vane Pumps
Data
Manual-WSA-Rotary Vane Pump-W2V80
Manufacturer information
provider logo
WSA

Vacuum pump manufacturer, Direct-coupled type oil rotary pump, Refrigerant pump, Pirani gauge and more

Problem with product info?
Update request
Manufacturer
WSA
Brand
-
SKU
30974
Product Name
Rotary Vane Pump
Model Name
W2V80
Size
-
Weight
-
Product Details

W2V80

Medium sized model and suitable for production line. Shows the excellent degree of vacuum along with a reliable vacuum retention capacity. Through the precision machining, low noise and low vibration design offers a comfortable working environment. Easy to use and maintain with a simple structure.



Pumping Speed

800L/min

Ultimate Pressure

≤1X10-3 Torr

Motor Power

1.5kW(2hp)






Specifications

Pumping Speed

800ℓ/min

Ultimate Pressure

Gas Ballast Open

5X10 -2 Torr ( 6.7 Pa)

Gas Ballast Closed

≤1X10 -3 Torr ( 1.3X10 -1 Pa )

Power Input

Standard

Φ3 220VAC/380VAC 50/60 Hz

Option

Φ1 220VAC/380VAC 50/60 Hz

Customer’s Request (Voltage, Frequency)

Full load Power

1.5kw (2 HP)

Motor Speed

1,700 rpm

Inlet

Standard

NW40 * Can be changed to NW25

Option I

+Hose Nipple : Φ36 OD for NW40

Option II

+ PT Nipple : 1&1/4 for NW40

Option III

User Requested Type

Weight Φ1

68.5 kg

Weight Φ3

65.1 kg

Oil Capacity

2700cc (2.7 L)

Ambient Operation Temp. Range

7~40 °C

Overall Dimension (mm)

226(W) X 624(L) X 346(H)





Dimensions





Pumping Curve



Vacuum pump manufacturer, Direct-coupled type oil rotary pump, Refrigerant pump, Pirani gauge and more
WSA has produced and supplied vacuum technology-based products such as vacuum pumps, vacuum gauges and accessories. As being developed for the first time in Korea as direct-coupled type oil rotary pumps in 1989, W2V-series have been used in many display and home appliance production lines including SAMSUNG, LG, DAEWOO, ORION and HITACHI. Starting with Japan in 1984, currently, we have exported to more than 20 countries such as United States, Russia, Canada, Japan, China and India etc.From the small research equipment of institutes to the production site, W2V Series is proving the stability and reliability in all areas that require a vacuum. WSA performs the entire process in-house from designing to machining and assembling of all our products hence WSA can be quickly corresponding to our customers. With passion and a sense of mission that all employees of the WSA is responsible for the foundation of vacuum industries, you can be assured that we do our best to continuous technology development and quality improvement
