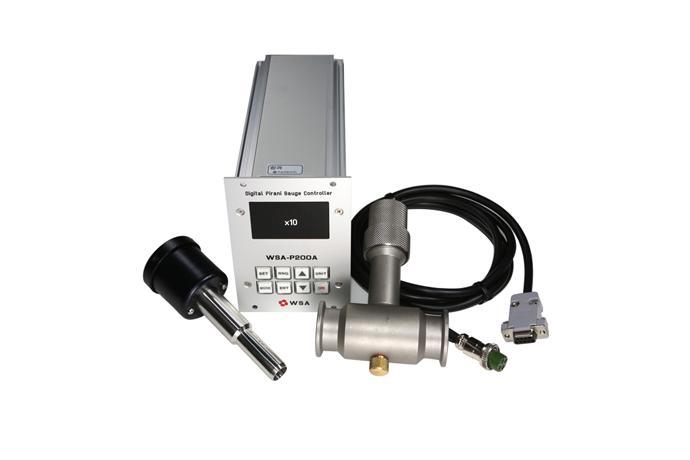

Pirani Gauge
Digital gauge with pirani method measures the range of 20 Torr ~ 1mTorr. It provides the measured vacuum data as graphs and excel file formats through a dedicated program.
Display Range | 1mTorr~20Torr |
Data Gathering Cycle | 200ms |
Power | 20W, Ac85~260V, 60/50Hz |
Specifications
Content | Description |
Display Range | 1mTorr ~ 20Torr |
Error Range | 15% |
Display | FND, LED |
Operation | Front 8 button type |
Calibration | User can calibrate by using SPAN & ZERO dial |
Set Point | Dual Set Point(High/Low Set Value) Relay Contact |
Data Gathering Cycle | 200ms |
Digital Output | 12bit output of current vacuum level |
Monitoring Program | RS232C data transfer to PC program |
ADC | 12Bit |
Sensor Type | 15mm O.D. (standard) |
Sensor Cable | 2M (default length) |
Power | 20W, AC85 ~ 260V, 60/50Hz |
Dimension
Pirani Gauge Parts
Control Pannel - LED display by 0.1 point - Setting 2 set points for auto controlling - Torr/Pascal Unit Change | Sensor Cable - 2m(default) - 5m - 10m - User request length |
- NW25-15 phi Gauge Port - NW25 / Venting - NW25-15 phi Gauge Port / Venting |
|
