product Image
Oil Mist Traps
Model Name
WOF-150(PC)
Series
Oil Mist Traps
Data
-
Manufacturer information
provider logo
WSA

Vacuum pump manufacturer, Direct-coupled type oil rotary pump, Refrigerant pump, Pirani gauge and more

Problem with product info?
Update request
Manufacturer
WSA
Brand
-
SKU
30979
Product Name
Oil Mist Traps
Model Name
WOF-150(PC)
Size
-
Weight
-
Product Details

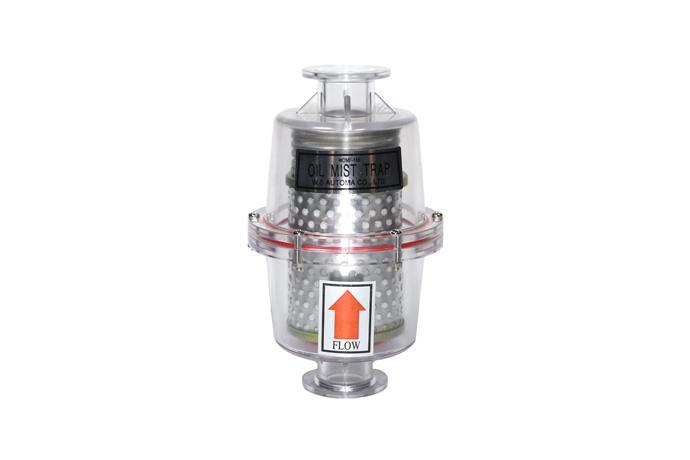

In low vacuum section between the atmospheric pressure (760 Torr) and 10 Torr, since the amount of air sucked into the vacuum pump is large, the phenomenon that the vacuum oil is discharged with the air as a fine mist from the exhaust port will occur. This is referred to as the oil mist and OMT is the exhaust filter that is used in case you canโ€™t connect the exhaust line to a separate hood and duct, or external.







Specifications

Inlet/Outlet

NW25/NW25

Material

Poly Carbonate (PC)

Weight

0.38kg

Filter Spare for replacement

OMT Filter for WOF-150

Applicable Pumps

W2V10 ~ W2V40

Vacuum pump manufacturer, Direct-coupled type oil rotary pump, Refrigerant pump, Pirani gauge and more
WSA has produced and supplied vacuum technology-based products such as vacuum pumps, vacuum gauges and accessories. As being developed for the first time in Korea as direct-coupled type oil rotary pumps in 1989, W2V-series have been used in many display and home appliance production lines including SAMSUNG, LG, DAEWOO, ORION and HITACHI. Starting with Japan in 1984, currently, we have exported to more than 20 countries such as United States, Russia, Canada, Japan, China and India etc.From the small research equipment of institutes to the production site, W2V Series is proving the stability and reliability in all areas that require a vacuum. WSA performs the entire process in-house from designing to machining and assembling of all our products hence WSA can be quickly corresponding to our customers. With passion and a sense of mission that all employees of the WSA is responsible for the foundation of vacuum industries, you can be assured that we do our best to continuous technology development and quality improvement
