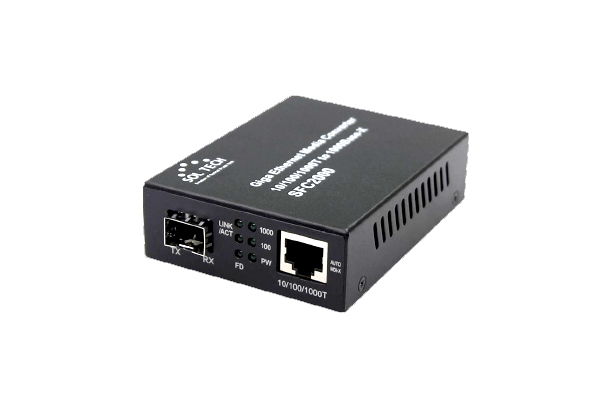

product Image
1Gbps SFP Ethernet Media Converter
Model Name
SFC2000-SFP
Series
Ethernet Converter
Data
카탈로그-솔텍-광컨버터-SFP 모듈형 광컨버터-SFC2000-SFP
Manufacturer information
provider logo
YOUNGKOOK

CCTV, Fence monitoring facility, Access control system, Forest fire monitoring system

Problem with product info?
Update request
Manufacturer
SOLTECH
Brand
-
SKU
131150
Product Name
1Gbps SFP Ethernet Media Converter
Model Name
SFC2000-SFP
Size
-
Weight
-
Product Details

10/100/1000Mbps-T to 1000Mbps-SX/LX Conversion(SFP Slot)

  • Converts UTP (100/1000Mbps) to Fiber Optic (1000Mbps-SX/LX) for Long distance Transmission
  • Network Component for Optical LAN, FA, Internet Network, FTTH etc.
  • UTP Cable Auto MDI-X
  • SFP Optical Module Mounted (1.25Gbps Exclusive)



Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3ab 1000Base-T
IEEE 802.3z Gigabit fiber
Interface RJ45 Ports 1-Port 10/100/1000Mbps, AutoNnegotiation
Auto MDI/MDI-X, TP/STP Cat. 3, 4, 5, 6 Cable
EIA/TIA-568 100-ohm(Transmission distance 100m)
Fiber Ports 1×1 Slots
Multi mode : 62.5/125㎛(220m)
Single mode : 9/125㎛(~80km))
LED Indicators Per unit: Power
TX Port(Link/Act, FDX/HDX,1000Mbps,100Mbps)
FX Port(Link/Act)
Dip Switch Internal, Auto-Negotiation, 10/100/1000Mbps, Full/Half Duplex, FLCF on/off
Performance Transmission speed 1000Mbps
Environmental Temperature Operation: 0℃ ~ 60℃
Store: -20℃ ~ 80℃
Humidity 5 ~ 95% (Non-condensing)
Power consumption SFC2000-SFP : 4.8W, SFC2000-SFP/I : 4.5W
Installation Stand alone, Center Mount Module Type
Input Voltage DC 5V 2A SMPS Adapter
Dimensions Stand alone : 71mm(W) x 94mm(D) x 26mm(H)
Built-in Power Type : 118mm(W) x 184mm(D) x 34mm(H)
