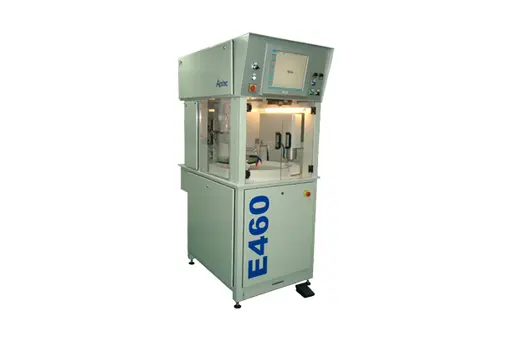

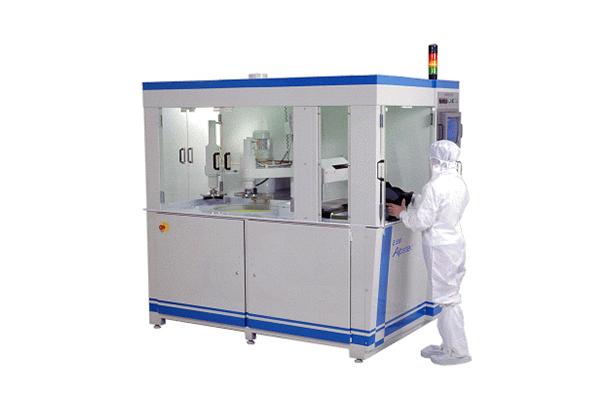

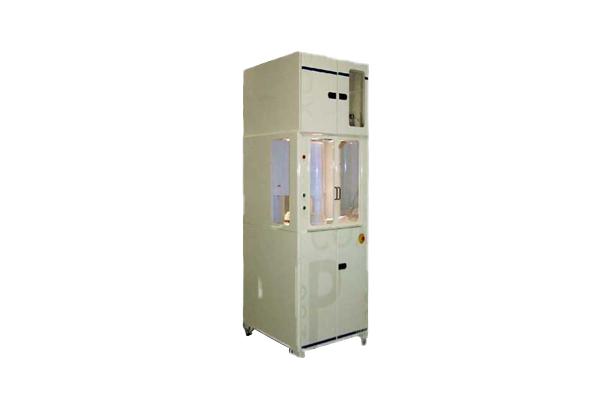

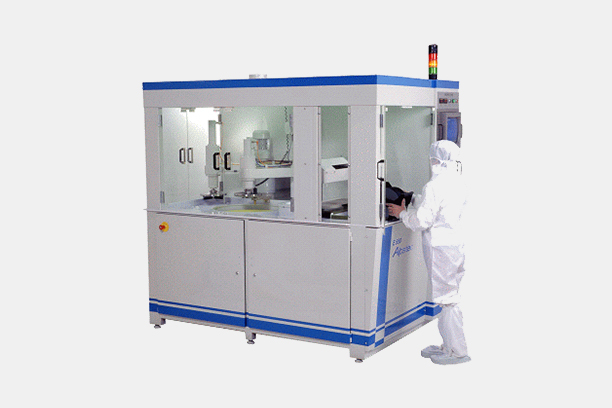

CMP Machines E460
모델명
E460
사이즈
-
중량
-
제품 상세 정보

Advantages

Quick exchange of parts dedicated to process: platen, carrier and conditioning head (time required 2min).

Perfect for sharing the machine between various teams.

An optimum ratio service / costs

A fast and simple tool preparation for process

Solutions for the polishing of small-sized samples: 10mmx10mm, 15mmx15mm, 1 “, quarter of 2 “. Any shape can be realized

A recognized robustness




Using

The E460 is designed for polishing and planarization of single wafers with diameters between 1″ and 8″. The optimal use of E460 is in the field of research and development application as well as small scale production requirements due to the machine’s flexibility.

The number or recorded process recipes is only limited by the hard disk space

The E460 offers 10 process steps totally independent

The step parameters are checked to fit with the tool configuration limits During process, a specific transition parameter offers a soft evolution of all the step parameters values from the present step settings to the next step settings Loading is manual.

An automatic loading option is under development

The conditioning can be used ex-situ or in-situ during selected steps of the polishing recipe Plate, carrier and conditioning tool can be exchanged in a few seconds, making possible the sharing of the tool for different processes, different wafers sizes and different teams

The end point detection option is directly integrated in the tool control software for a better integration of that function

The tool can be connected to the internet for distant and immediate support: trouble shooting or tool use training.

Our standard wafer mounting uses inserts, vacuum and back pressure but any king of mounting is possible: wax, templates.

Special carrier arrangement can be realized to fit to customers requirements.




Specifications

Dimensions Width 800 mm (2.62 feets)
  Depth 1353 mm (4.57 feets)
  Height 2000 mm (6.97 feets)
  Weight 800 kg (1765 lb)
  Wafer dimensions Ø 1″-8″
  Surface 1,08 m2 ( 11.97 sq.feets)
Facilities Voltage 220-380V, 3-phase / 50-60 Hz
  Compressed air 6-7 bar, 5 bar (min.)
  Water 1 bar
  Head motor 0.37 kW
  Platen motor 2.2 kW
Consumption DI-Water 20 liter/h
  Compressed air
(incl.Sweeping motion)
80 liter/h
  Electricity 3 kW
  Vacuum Internal vacuum pump

Specification data are subject to change due to design evolutions.




Operator control panel and accesses

The operator interface uses a touch screen located over the access-door of the polishing area.

Functions are accessible from the touchscreen, after login of the user with password control.

Through the doors the user has access to the plate, carrier and conditioning device, and can load and unload the wafers.




Control cabinet

It is integrated to the tool structure. It is located on top of the tool as well as on the rear.

Exhaust

2 exhausts are installed on the machine top and just near the polishing plate

Slurry pumps

Slurry pumps are installed on the back side of the tool. Standard is 2 pumps but 4 can be installed and driven by the tool controller




Options

-Conditioning tools of various types, brush, diamond disk and diamond ring

-Temperature regulating equipment

-End point detection

-Polishing platens: Ø 460 mm or Ø 480 mm

-Carriers for cut samples (10mmx10mm, quarter of 2" wafers,....)

-Special carrier to fit with spécific needs

-Special tool modification for specific process needs

-Special configuration for polishing platens: Ø 615 mm

-Water leak detection
