Description

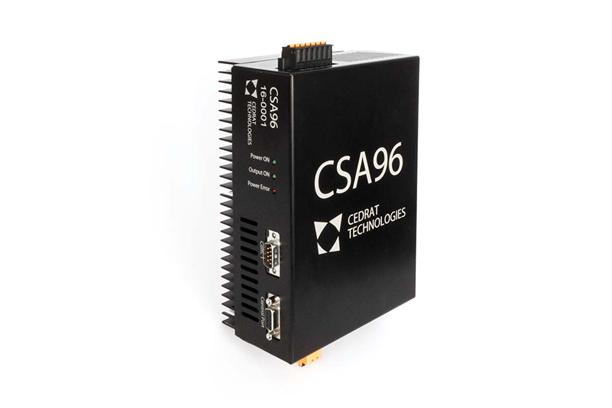

The CSA96 is a compact high power switching amplifier for linear / rotary magnetic actuators. It features a wide bandwidth current controller and can run with an external DC supply. It allows energy recovery to achieve high efficiency.
Performances
Input = 96Vdc; Max output current & voltage : up to 20A, +/- 96V; Output power: 2kVA; Bandwidth >1kHz ; Dimensions (w x l x h): 140x212x59mm3, DIN rail mountable. Commands : Analog - Features : Braking system;
Status
Preliminary
