제품개요 | Storm Valves |
크기 | - |
재질 | Bronze / Cast Iron / Cast Steel |
제품특징
Cast steel : Storm valves for marine use.
- Cast steel - JIS F 3058, F 3060 Vertical Storm Valves

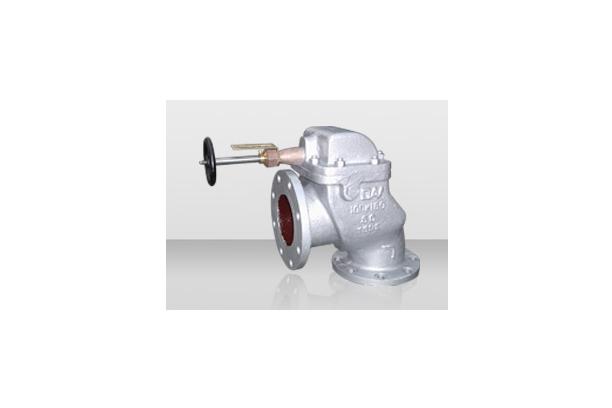

- Cast steel - Ref, JIS F 3058, 3060 Angle Storm Valves
Type of Vertical Storm Valve | Type of Angle Storm Valve |
Basic Design
End connection
- R.F Flanged ends(JIS B2210/ JIS B2220)
- F.F Flanged ends(JIS B2210/ JIS B2220)
제품규격
VALVE RATING | Position | VALVE SIZE | ||||||||
50A | 65A | 80A | 100A | 125A | 150A | 200A | 250A | 300A | ||
Vertical Storm JIS F 3058 JIS F3060 | H | 210 | 240 | 260 | 280 | 330 | 360 | Note. 2. | ||
H2(OPEN) | 300 | 305 | 305 | 310 | 310 | 275 | ||||
L | 106 | 124 | 136 | 161 | 181 | 199 | ||||
Angle Storm Ref. JIS F 3058 Ref. JIS F 3060 | H | 170 | 190 | 220 | 250 | 270 | 340 | Note. 2. | ||
H2(OPEN) | 300 | 305 | 305 | 310 | 310 | 275 | ||||
L | 93 | 135 | 145 | 160 | 183 | 203 |
