MATERIAL :
- NAVINIC 10® CuNi10Fe1Mn
- NAVINIC 30® CuNi30Mn1Fe

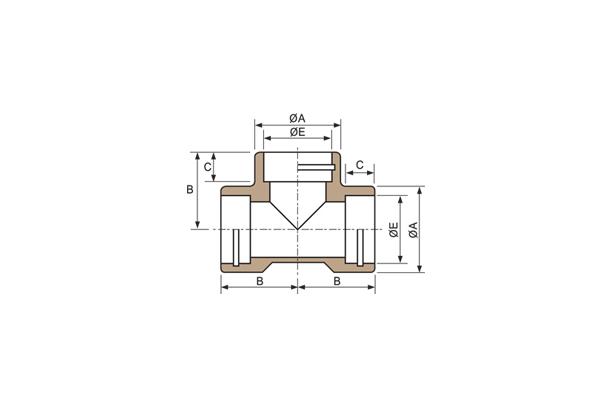

Outside diameter of pipe ØD | ØA mm | B mm | ØE mm | C mm | ØG mm | H mm | Theoretical weight | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
nominal inch | actual mm | kg/piece | ||||||||||
1/2 | x | 1/8 | 20 | x | 16 | 26.5 | 25 | 20.1 | 10 | 16.1 | 10 | 0.14 |
3/4 | x | 1/8 | 25 | x | 16 | 33.0 | 29 | 25.1 | 13 | 16.1 | 10 | 0.37 |
x | 1/2 | x | 20 | 20.1 | 10 | 0.35 | ||||||
1 | x | 1/8 | 30 | x | 16 | 38.0 | 34 | 30.1 | 13 | 16.1 | 10 | 0.47 |
x | 1/2 | x | 20 | 20.1 | 10 | 0.45 | ||||||
x | 3/4 | x | 25 | 25.1 | 13 | 0.41 | ||||||
1 1/4 | x | 1/8 | 38 | x | 16 | 46.0 | 38 | 38.1 | 13 | 16.1 | 10 | 0.83 |
x | 1/2 | x | 20 | 20.1 | 10 | 0.81 | ||||||
x | 3/4 | x | 25 | 25.1 | 13 | 0.77 | ||||||
x | 1 | x | 30 | 30.1 | 13 | 0.73 | ||||||
1 1/2 | x | 1/8 | 44.5 | x | 16 | 56.0 | 44 | 44.6 | 13 | 16.1 | 10 | 1.35 |
x | 1/2 | x | 20 | 20.1 | 10 | 1.33 | ||||||
x | 3/4 | x | 25 | 25.1 | 13 | 1.29 | ||||||
x | 1 | x | 30 | 30.1 | 13 | 1.25 | ||||||
x | 1 1/4 | x | 38 | 38.1 | 13 | 1.17 | ||||||
2 | x | 1/8 | 57 | x | 16 | 63.5 | 50 | 57.3 | 16 | 16.1 | 10 | 1.89 |
x | 1/2 | x | 20 | 20.1 | 10 | 1.87 | ||||||
x | 3/4 | x | 25 | 25.1 | 13 | 1.83 | ||||||
x | 1 | x | 30 | 30.1 | 13 | 1.79 | ||||||
x | 1 1/4 | x | 38 | 38.1 | 13 | 1.71 | ||||||
x | 1 1/2 | x | 44.5 | 44.6 | 13 | 1.62 |
