Diamond KUTRONIC Sharpener
모델명
DKTR-260
시리즈
-
자료
Catalog-Fimor-Diamond KUTRONIC Sharpener
구매정보
provider logo
FIMOR SAS
Serilor 제품, 스퀴지, 샤프너, 액세서리, 스크린 인쇄 등
연락처
+33 243-406-600
이메일
-
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
브랜드
-
SKU
138825
제품명
Diamond KUTRONIC Sharpener
모델명
DKTR-260, DKTR-276, DKTR-296, DKTR-2120
사이즈
-
중량
-
제품 상세 정보

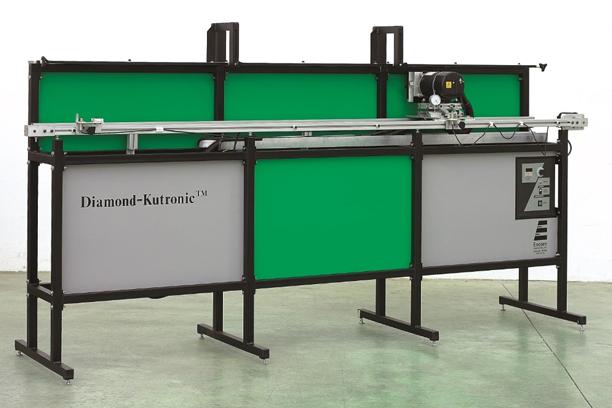

Diamond KUTRONIC is a high quality, fully-automated sharpener for longer squeegees; with four models to sharpen up to 60” (153cm), 76” (193cm), 96” (244cm) and 120” (305cm).  Uniform sharpening speed, consistency of grinding pressure and material removal, all assure superior quality control.

Machine specifications

Model DKTR-260, DKTR-276, DKTR-296, DKTR-2120
Sharpening Length 60″ (153cm) – 76″ (193cm) – 96″ (244cm) – 120″ (305cm)
Sharpening Profile Two straight/square-edge wheels supplied as standard
Diamond Wheel Grit Square/Straight #100 and #360 grit supplied as standard (#60 and #600 grit available by special order)
Material removal Recommended rate 0.002-0.005″ (0.05-0.10mm) – Grit dependent
Blade Height Tolerance +/- 0.006″ (0.15mm) measured from end to end
Edge Straightness Adjustable from -0.050″ to +0.050″ camber (-1.22mm to +1.22mm camber) at full length (Note: For best performance all diamond KUTRONIC are factory set at +0.050″camber)
Power Requirement 115-120v AC15Amp (230v AC optional)
Physical Size 60″ (153cm) Model:
Length: 86″ (218 cm)
Height: 62″ (157 cm)
Width: 27″ (69 cm)

76″ (193cm) Model:
Length: 102″ (259 cm)
Height: 62″ (157 cm)
Width: 27″ (69 cm)

96″ (244cm) Model:
Length: 117″ (297 cm)
Height: 62″ (157 cm)
Width: 27″ (69 cm)

120″ (305cm) Model:

Length: 141″ (358 cm)
Height: 62″ (157 cm)
Width: 27″ (69 cm)



Advantages

Sharpens a wide range of squeegee materials (some materials sharpen better than others*), including single and multiple durometer.
Special squeegee-clamping mechanism accommodates all holder profiles without bending or flexing the blade during sharpening.
Unique vertical lift assures consistent parallelism between sharpening wheel and blade.
Includes two 6’’ indestructible diamond sharpening wheels with a 5-year warranty against diamond wear in normal use.
Fully enclosed sharpening wheel for maximum safety during use.
Prepared for the installation of a vacuum system to clean residue from the sharpened squeegee (vacuum not included).

FIMOR SASSerilor 제품, 스퀴지, 샤프너, 액세서리, 스크린 인쇄 등
1977년부터 FIMOR는 스크린 인쇄를 위한 폴리우레탄 스퀴지 및 관련 액세서리 제조업체로 인정받고 있습니다. FIMOR는 스크린 인쇄(산업, 전자, 유리, 직물, 레이블, 상업용 그래픽 등)의 모든 분야를 망라하는 300개 이상의 활성 유통업체 네트워크를 통해 80개 이상의 국가에 유통되고 있습니다. 1982년, 새로운 세계 표준을 세우며, 최초의 컬러 코딩된 스크린 인쇄 스퀴지가 FIMOR에 의해 도입되었습니다. 프랑스 르망에 위치한 FIMOR 본사 및 생산 시설은 ISO 9001 및 ISO 14001 인증받았습니다. FIMOR는 대부분의 스크린 인쇄 애플리케이션에 적합한 제품을 개발하여 인쇄 공정의 안정성을 보장하고 있습니다. FIMOR의 스퀴지는 균일한 두께와 거품이 없는 표면을 보장하기 위해 원심 분리를 통해 생성됩니다. FIMOR는 원재료부터 완제품까지 완벽한 추적성을 제공합니다. 로컬 서비스는 코네티컷과 광둥성에 각각 사무실이 있고, 미국과 중국의 고객에 제공됩니다.
