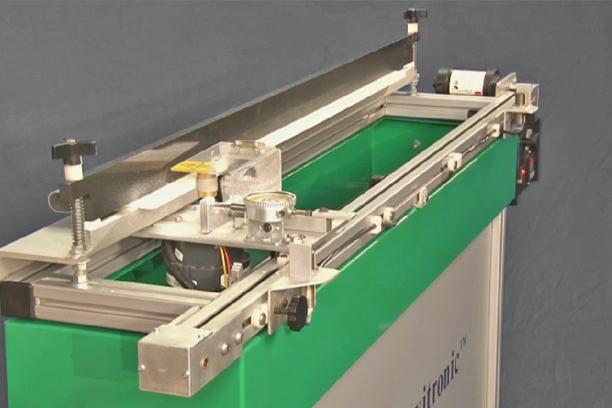

Diamond MAXITRONIC is a medium size, fully automatic precision squeegee sharpener with two industrial strength diamond sharpening wheels. This free-standing unit can sharpen 37” (94cm) in models MXTR-137 – MXTR-237 and up to 48” (122 cm) in models MXTR-148 – MXTR-248.
Machine specifications
Model |
MXTR-137; MXTR-148: 115-120v MXTR-237; MXTR-248: 220v |
Sharpening Length |
MXTR-137; MXTR-237: 37’’ (94 cm) – MXTR-148; MXTR-248: 48’’ (122cm). |
Sharpening Profile |
Two straight/square-edge wheels supplied as standard (other profiles and custom wheels available). |
Diamond Wheel Grit |
#120 and #230 grit supplied standard (other grit sizes available). |
Material removal |
Recommended rate not more than 0.0025’’ (0.05-0.10mm) in a single pass. |
Blade Height Tolerance |
+/- 0.006’’ (0.15mm) measured from end to end. |
Power Requirement |
MXTR-137; MXTR-148 = 115-120v AC 2Amp MXTR-237; MXTR-248 = 220-230v AC 1Amp (Please specify). |
Physical Size |
37’’ (94cm) Model: Length: 57’’ (145 cm) Height: 46’’ (117 cm) Width: 27’’ (69 cm)
48’’ (122cm) Model: Length: 73’’ (185 cm) Height: 46’’ (117 cm) Width: 27’’ (69 cm) |
Advantages
- Sharpens a wide range of squeegee materials (some materials sharpen better than others*), including single and multiple durometer.
- Uniform grinding pressure and adjustment for material removal.
- Secures squeegee by the blade during sharpening.
- Accommodates various squeegee holders.
- Includes two industrial strength diamond wheels with a 5-year warranty against diamond wear with normal use.
- Includes vacuum system on 100-115V models. 220V models supplied with spare parts kit. (Vacuum to be supplied locally by customer).
