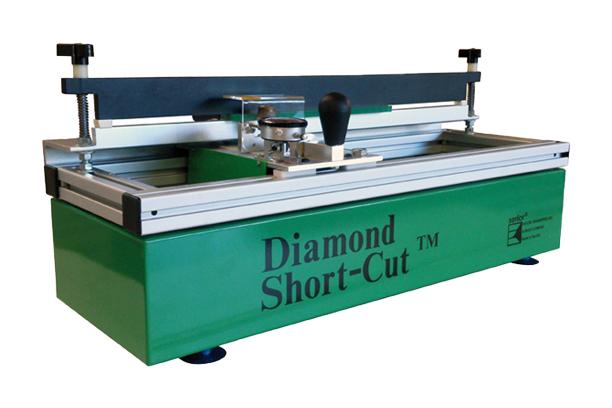

The small format, manual precision sharpener for screen printing squeegees 20” (51cm) or less. This portable table-top design fits anywhere and comes equipped with a single industrial strength diamond sharpening wheel.
Machine specifications
Model |
DSC-020: 115-120v DSC-220: 220v |
Sharpening Length |
DSC-020; DSC-220: 20”(51cm). |
Sharpening Profile |
A single straight/square-edge wheel is supplied as standard (other profiles and custom wheels available). |
Diamond Wheel Grit |
#120 supplied standard (other grit sizes available). |
Material removal |
Recommended rate not more than 0.0025’’ (0.05-0.10mm) in a single pass. |
Blade Height Tolerance |
+/- 0.006’’ (0.15mm) measured from end to end. |
Power Requirement |
DSC-020 = 115-120v AC 2Amp DSC-220 = 220-230v AC 1Amp – Please specify according to local requirements. |
Physical Size (Table top unit) |
Length: 30”(76cm) Height: 14”(36cm) Width: 12”(30cm) |
Advantages
- Sharpens a wide range of squeegee materials (some materials sharpen better than others*), including single and multiple durometer.
- Uniform grinding pressure and adjustment for material removal.
- Secures squeegee by the blade during sharpening.
- Accommodates various squeegee holders.
- Includes one industrial strength diamond wheels with a 5-year warranty against diamond wear with normal use.
- 220V model supplied with spare parts kit.
