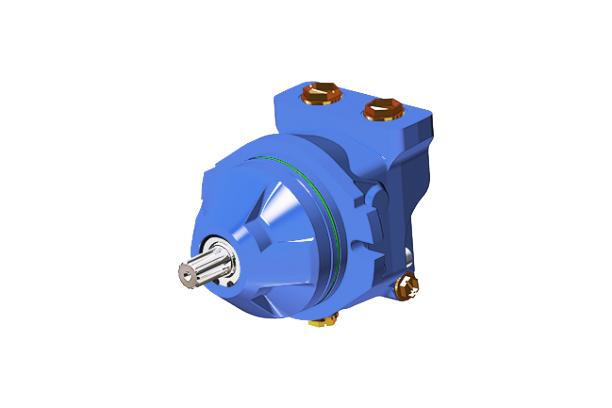

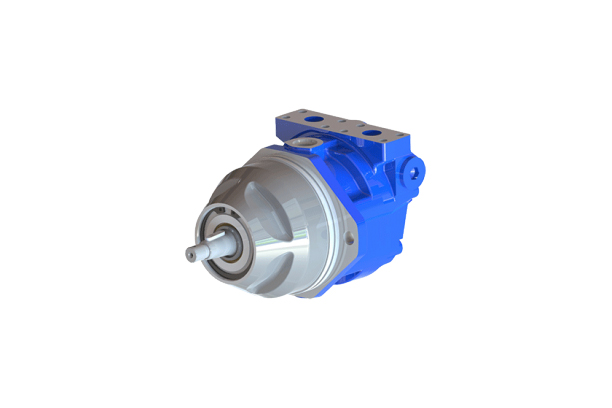

Description of the product :
M : Motor.
SI : Semi-integrated, model definition already used for the fixed and variable displacement motors, meaning that the flange is further back so the motor can easily be fitted into a gearbox or hub. These motors are usually used for vehicle wheel drive.
2C : 2 displacements. More often referred to as 2 speed, because with a constant inlet flow, the change in displacement induces a change in shaft speed and therefore in vehicle speed.
45/49 : Maximum displacement varying the angle of the swashplate changes the stroke of the pistons and thus the displacement of the motor.
Control : the motor is naturally at maximum displacement. Supplying oil to the control piston through an orifice in the back piece pushes the swashplate to minimum displacement position.
Characteristics and advantages :
Applications :
