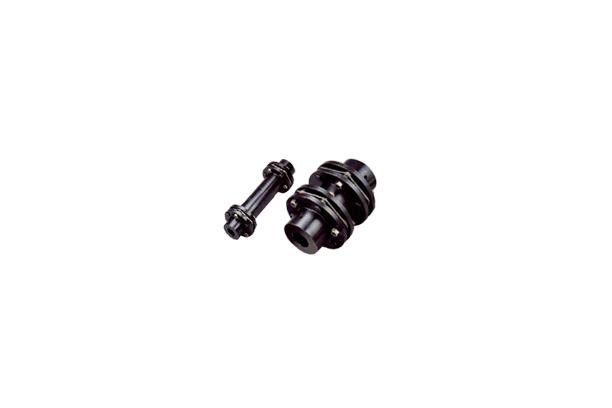

W4-00FH/V Type Disc Flexible Coupling 10F,15F,20F,25F,30F by 현대산업기계(주)

Size No.	Torque (kg·m)	A (mm)	D min (mm)	F (mm)	H (mm)	J (mm)	⑴ 중량 (kg)		⑵ 관성효과 GD² (kg·cm²)
Size No.	Torque (kg·m)	A (mm)	D min (mm)	F (mm)	H (mm)	J (mm)	ⓐ W₁ D min	ⓐ W₂ 가산분	ⓑ D min	GD² 가산분
10 F	9.2	81	72.2	25	46	16	1.9	0.029	50	0.44
15 F	18	93	75.8	29	51	22	3.0	0.032	98	0.59
20 F	25	104	88.4	34	61	20	4.3	0.039	168	1.10
25 F	43	126	99.4	41	71	25	7.5	0.075	442	2.82
30 F	79	143	111.4	48	84	28	11.7	0.110	922	6.03
35 F	130	168	141.6	57	106	23	18.7	0.139	2,032	12.33
40 F	210	194	154.0	64	119	30	28.3	0.161	3,839	19.21
45 F	340	214	183.2	76	137	22	38.3	0.186	6,857	29.65
50 F	500	246	211.8	89	157	23	58.2	0.250	13,639	52.73
55 F	650	276	234.4	102	170	40	0.310	0.310	25,552	76.53

⑴ 전중량 W (kg)은 다음식을 이용하여 계산한다.
Total weight can be calculated by using following equation.

W = W₁ⓐ D min + L × W₂가산분
L : D - D min (cm)

⑵ 전 관성효과 GD² (kg·cm²)는 아래식을 이용하여 계산한다.
Total inertia effect can be calculated by using following equation.

GD² = ⓑ D min + L × GD² 가산분
