Choose quality AND speed with the Komori-Chambon rotary die-cutting systems whatever the cardboard characteristics.
Our expertise is unique: benches, cassettes and tools are designed and manufactured by Komori-Chambon for the best control and ease of use.
Rotary die-cutting benefits:
- Speed
- No nick point
- Inline stripping
- High configuration flexibility, inline and offline
- Quick and easy set-up
- Higher register accuracy
Komori-Chambon strengths:
- Expertise in most demanding industries, up to 450 m/mn
- All technologies available (solid, segmented, shell, magnetic)
- Outstanding precision and durability of tools
- Best in class cardboard tension control
Main Applications
Liquid Packaging, General Folding Carton, Tabacco, New : Beverage carrier / Aseptic
Komori-Chambon expertise
|
100% design and manufacture Komori-Chambon offers benches, cassettes and tools. Combine them for the best efficiency and ease of use. We can assist you as well on selected sections of solutions. |
|
Quality and durability Frames, format parts and tools show that there is no compromise on quality. Their top-level durability can be further-extended through resharpening and refurbishing. |
|
True taylormade design The infinitely variable repeats guarantee the best answer to your needs. Push the limits of precision and deliver perfect blanks, without nickpoints. |
|
High speed The cutting stage will no longer be the bottleneck of your production flow. Enjoy a record 450 m/mn speed, whatever the cardboard type. |
Production flow insights
|
▼ |

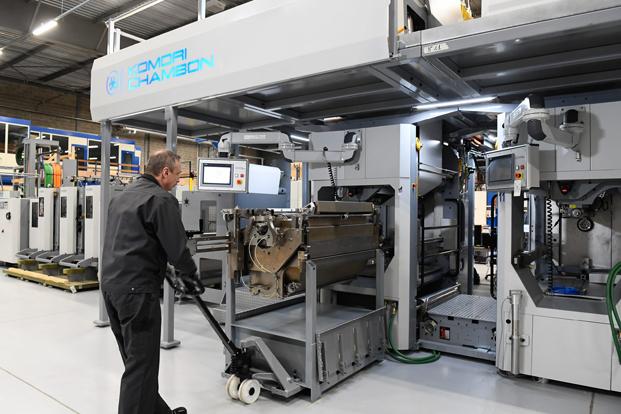

- The tools are prepared offline so that the OEE (Overall Equipment Effectiveness) is maximum. - Simple and fast settings are proceeded for an instantaneous and stable production quality. - Very quick installation of the tools onto the production line. |
|
|
▼ |
- The embossing can be separated or combined with the creasing and cutting stations. - It is then the first out of usual 3 stations. - An infeed unit regulates the web flow between the printing and the converting stages. |
|
|
▼ |

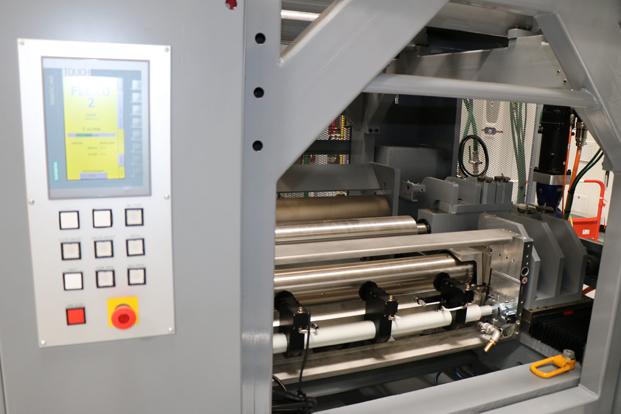

- A high precision creasing is crucial for an efficient folding and filling process - The liquid packaging industry is extremely demanding in terms of accuracy. - The bricks must remain perfectly sealed. - Komori-Chambon has built a very strong knowledge in inline creasing |
|
|
▼ |

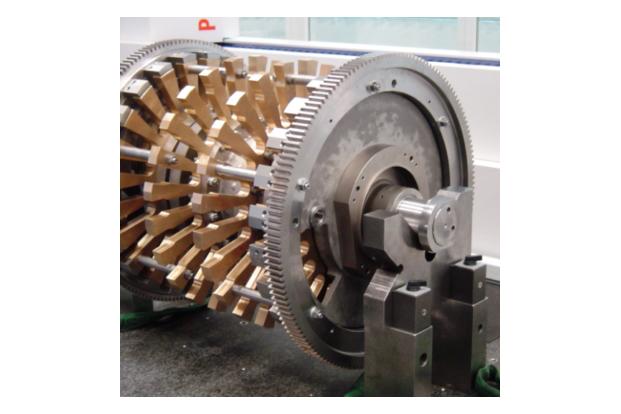

- Perfect cutting at high speed, up to 450 m/mn is allowed by the rotary die-cutter - 100% cut or half cut, standard cartonboard or PE coated : the tools are adapted to the substrate (single knife – crush cut or twin knives – scissors cut) - The cylinders also follow your versatility targets and ease of operation, from solid (monobloc) to segmented, shell or magnetic types. - A sheeting process can be considered thanks to a sheet-cutting tool integrated inline. |
|
|
▼ |

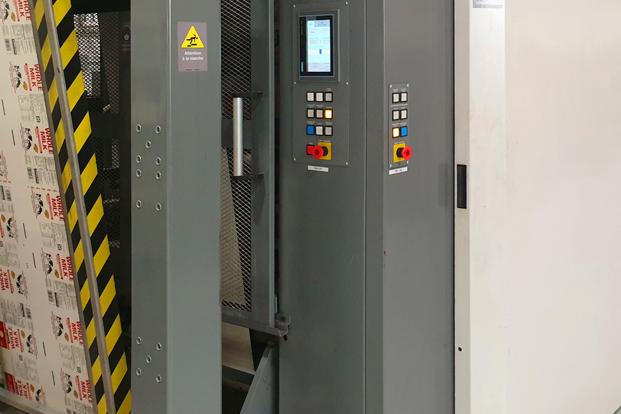

- The stripping stage is key in the customers acceptance and satisfaction - To avoid the usual speed loss and jam risks, the design and precision must be high-level - Available in inboard or outboard (separated) configuration - Available in single blank or multi-blanks versions |
|
 LABEL CUTTING |

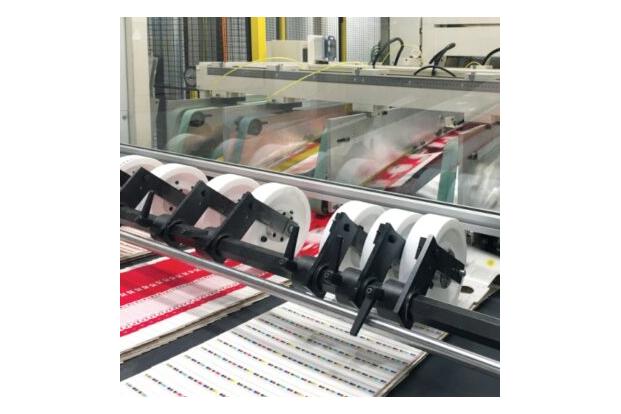

- For maximum versatility, the RDC can include a cross-section cutting function with variable repeat - No need to modify the regular installation. The web will by-pass the cutting station and be transfered to the slitter - The production can be handled seamlessly whatever the converting operations. |
Available configurations
|

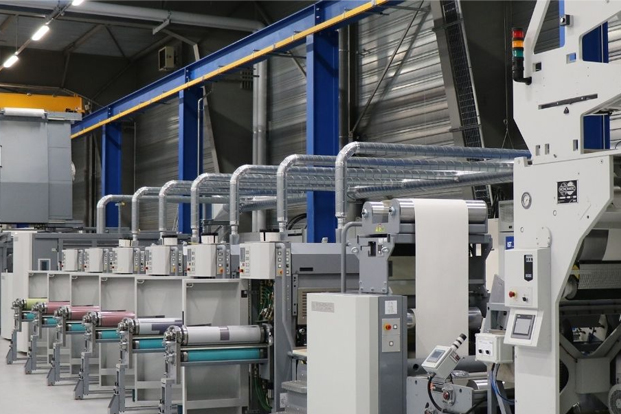

INLINE For an optimized production flow, the rotary die-cutter (RDC) is installed inline. The RDC can be fitted after a Komori-Chambon printing line or after an OEM equipment. The inline set-up avoids any flow interruption
|
|
OFFLINE The rotary die-cutter is installed right after the unwinder and is fed by a printed roll. The embossing, creasing and cutting stages are done (in whole or in part) offline. A delivery solution can be added downstream.
|
