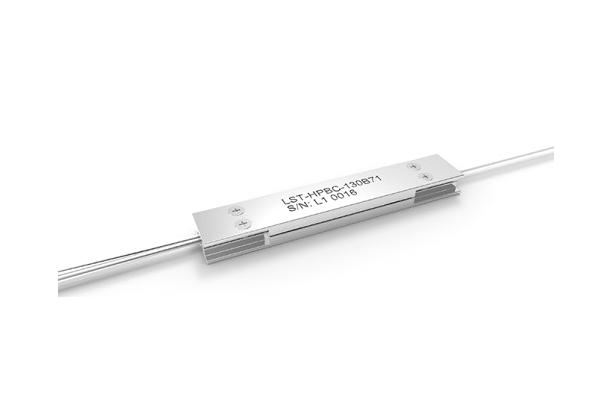

PM Pump & Signal Combiners


LSTECH’s  PM (n+1)x1 pump and signal combiners can be used to combine the power from several multimode laser diodes and signal channel into one output fiber, delivering the combined power with pump signal for applications in industrial, military, medical and telecommunication markets. The configurations can be fully customized based upon request.



Features:

- High pump efficiency

- Preservation of modal content

- Low signal insertion loss

- High PER

- High power handling over 400W/port

- Stable environmental performance

- Metal packaging to maximize heat dissipation



Applications:

- Fiber lasers

- Fiber amplifiers




High Power Pump and Signal Combiners (n+1)x1



ParameterSpecification
Operating Wavelength (nm)700 ~ 2,200
Pump Efficiency (%)See Configuration Table
PER (dB)≥ 18
Operating Temperature (℃)-20 ~ +70
Storage Temperature (℃)-40 ~ +85
Package Dimension (mm)50×5×5 / 70x12x6
Fiber Length (mm)1,000
* Custom Configurations Available


ConfigurationSignal Input FiberPump Input FiberOutput FiberSignal Wavelength
(nm)
Signal
Insertion Loss
(dB)
Pump Efficiency
(%)
PER (dB)
(2+1)×1PM 98MM 105/125 NA0.15PM x/125 DC1,000~1,100< 0.7> 90≥ 18
MM 105/125 NA0.22(x=6, 10, 12, 15, 20)
PM 98MM 105/125 NA0.15PM x/250 DC1,000~1,100< 0.7> 90≥ 18
PM 6/125 DCMM 105/125 NA0.22(x=25, 30)
PM 6/125 DCMM 105/125 NA0.15PM 6/125 DC1,000~1,100< 0.5> 90≥ 18
MM 105/125 NA0.22PM x/125 DC (x=10, 12, 15, 20)< 0.7
PM x/250 DC (x=25, 30)< 0.7
PM 10/125 DCMM 105/125 NA0.15PM 10/125 DC1,000~1,100< 0.5> 90≥ 18
MM 105/125 NA0.22PM x/125 DC (x=12, 15, 20)< 0.7
PM x/250 DC (x=25, 30)< 0.7
PM 12/125 DCMM 105/125 NA0.15PM x/125 DC (x=12, 15, 20)1,000~1,100< 0.7> 90≥ 18
MM 105/125 NA0.22PM x/250 DC (x=25, 30)
PM 15/125 DCMM 105/125 NA0.15PM x/125 DC (x=15, 20)1,000~1,100< 0.7> 90≥ 18
MM 105/125 NA0.22PM x/250 DC (x=25, 30)
PM 20/125 DCMM 105/125 NA0.15PM 20/125 DC1,000~1,100< 0.5> 90≥ 18
MM 105/125 NA0.22PM x/250 DC (x=25, 30)< 0.7
PM 25/250 SC or DCMM 105/125 NA0.15PM x/250 DC (x=25, 30)1,000~1,100< 0.7> 90≥ 18
MM 105/125 NA0.22
PM 25/250 SC or DCMM 200/220 NA0.22PM x/250 DC (x=25, 30)1,000~1,100< 0.7> 85≥ 18
PM 1550 DCMM 105/125 NA0.15PM 1550 DC1,500~1,600< 0.5> 90≥ 18
PM 1550MM 105/125 NA0.22
PM 25/300 DCMM 105/125 NA0.15PM 25/300 DC1,500~1,600< 0.5> 90≥ 18
MM 105/125 NA0.22
(6+1)×1PM 98MM 105/125 NA0.15PM x/125 DC1,000~1,100< 0.7> 88≥ 18
PM 6/125 DCMM 105/125 NA0.22(x=6, 10, 12, 15, 20)
PM 98MM 105/125 NA0.15PM x/250 DC1,000~1,100< 0.7> 93≥ 18
PM 6/125 DCMM 105/125 NA0.22(x=25, 30)
PM 10/125 DCMM 105/125 NA0.15PM x/125 DC (x=10, 12, 15, 20)1,000~1,100< 0.7> 88≥ 18
MM 105/125 NA0.22PM x/250 DC (x=25, 30)> 93
PM 12/125 DCMM 105/125 NA0.15PM x/125 DC (x=12, 15, 20)1,000~1,100< 0.7> 88≥ 18
MM 105/125 NA0.22PM x/250 DC (x=25, 30)> 93
PM 15/125 DCMM 105/125 NA0.15PM x/125 DC (x=15, 20)1,000~1,100< 0.7> 88≥ 18
MM 105/125 NA0.22PM x/250 DC (x=25, 30)> 93
PM 20/125 DCMM 105/125 NA0.15PM 20/125 DC1,000~1,100< 0.7> 88≥ 18
MM 105/125 NA0.22PM x/250 DC (x=25, 30)> 93
PM 1550 DCMM 105/125 NA0.15PM 1550 DC1,500~1,600< 0.5> 90≥ 18
PM 1550MM 105/125 NA0.22> 88
(18+1)×1PM 98MM 105/125 NA0.15PM x/200 (x=10, 20)1,000~1,100< 0.7> 90≥ 18
PM 6/125 DCPM x/250 DC (x=25, 30)> 93
PM x/400 DC (x=20, 25, 30)> 95
PM x/125 DCMM 105/125 NA0.22PM x/400 DC (x=20, 25, 30)1,000~1,100< 0.7> 93≥ 18
PM x/130 DCMM 106.5/125 NA0.22
* Custom Configurations Available
