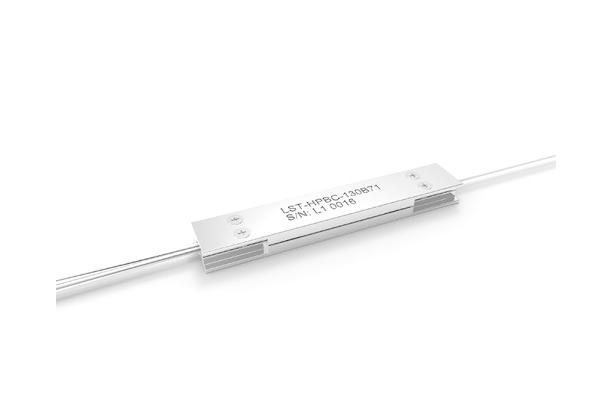

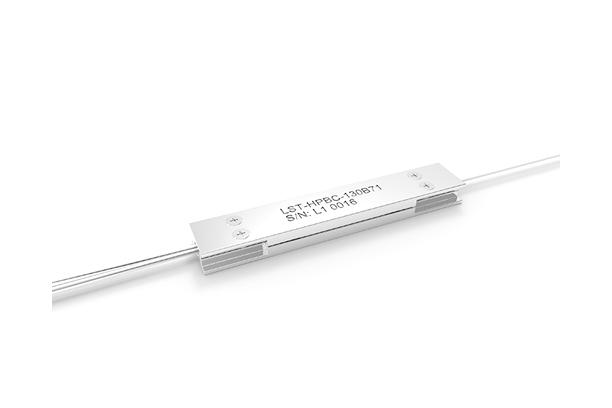

Signal beam combiner is a passive component for laser systems to scale up the laser power using combining of output power from several laser engines.
LSTECH supplies fully customized, cost effective signal beam combiners for industrial, medical, communication, military and R&D applications.
Features:
- Scale up the laser power to 3, 4.5, 6 kW
- User-friendly and fully integrated configuration
- High brightness
- Compact and simple
- High stability
- Cost effectiveness
Applications:
- Laser cutting, drilling and welding
- Laser additive manufacturing
- 3D printing
Configuration | LSBC-A031 | LSBC-A041 | LSBC-A061 |
---|---|---|---|
3×1 | 4×1 | 6×1 | |
Input Fiber | x/400 ㎛ DCF | 20/125 ㎛ DCF | |
(x= 20, 25) | 25/250 ㎛ DCF | ||
Output Fiber | 100/120/360 ㎛ 0.22 | ||
Handling Power | 1.0 kW/port | 1.0 kW/port | 500 W/port |
1.5 kW/port | 1.5 kW/port | 1.0 kW/port | |
2.0 kW/port | |||
Signal Loss | ≤ 0.1 dB | ||
BPP | ≤ 3.0 mm∙mrad | ||
Fiber Length | Input Fiber ≥ 1.5 m | ||
Output Fiber ≥ 2.0 m |
