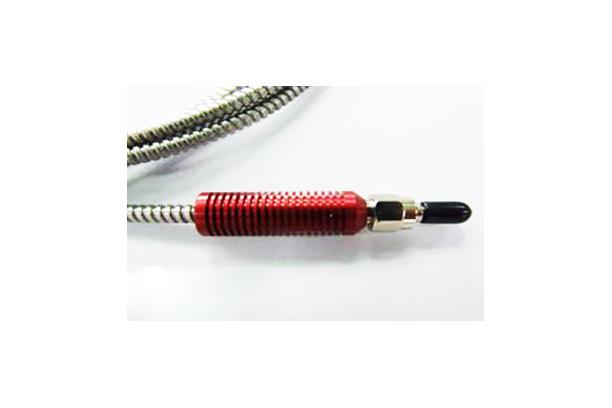

LSTECH’s SMA-905 connectors have a threaded coupling nutand feature a stainless steel ferrule with ID sizes up to 1,000microns to accommodate a wide range of optical fibers.
Parameters | Conditions | Unit | Values |
---|---|---|---|
Insertion Loss | SM | dB | <0.3 |
MM | dB | <0.1 | |
Material (Body) | Brass/Nickel plated | ||
Material (Ferrule) | Stainless steel | ||
Fiber type | 125 to 1,000 micron | ||
Mating Durability | 1,000 cycles |
