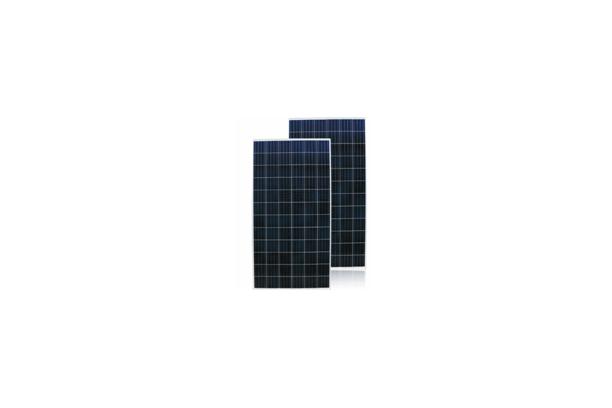

Luxco Mono crystalline module
Cell Type : Mono Crystalline Silicon
Cell Dimensions : 156.75 x 156.75㎟ (6x6 in²)
Type Specifications
Type | Module | P MAX | Efficiency(%) | Remark | ||
66Cell Series | LXS-4K300B1 | 300 | 16.85 | LXS-4KxxxB1/2(300~310Wp) | ||
LXS-4K305B2 | 305 | 17.13 | ||||
LXS-4K310B2 | 310 | 17.41 |
Electrical Characteristics
Characteristics | Unit | 300 | 305 | 310 |
---|---|---|---|---|
Rated Power at STC(Pmax.) | W | 300 | 305 | 310 |
Max.Power Voltage (Vmp) | V | 34.6 | 34.9 | 35.4 |
Max.Power Current (Imp) | A | 8.68 | 8.74 | 8.76 |
Open Circuit Voltage (Voc) | V | 42.35 | 42.50 | 42.62 |
Short Circuit Current (Isc) | A | 9.31 | 9.34 | 9.39 |
Efficiency | % | 16.85 | 17.13 | 17.41 |
Maximum System Voltage | VDC | 1,000 | ||
Maximum Series Fuse Rating | A | 15 | ||
Maximum Series Diode Rating | A | 15 | ||
Power Tolerance | W | 0~5W |
Mechanical Characteristics
Cell Type | Mono Crystalline Silicon |
Cell Dimensions | 156.75X156.75 mm² |
No.of Cells and Connections | 66(6x11)connected in Series |
Weight | 20.5kg |
Operatiog Temperature | -40 to+80℃ |
Connector Type | MC4 compatible |
Junction Box | IP67 grade |
Output Cable | 2 x 1200mm / 2 x 47.2inch length |
Fire Resistance Rating | Class C |
Application Class | Class A |
Structural Load | 5400 Pa |
Temperature Coefficients
Nominal Operation Cell Temp.(NOCT) | ℃ | 45±2℃ |
The Coefficient of Pmax. | %/℃ | -0.359 |
The Coefficient of Voc | %/℃ | -0.245 |
The Coefficient of Isc | %/℃ | 0.024 |
* Module specifications are subject to change without notice.
* STC (Standard Test Conditions) :25℃, 1000W/㎡, AM1.5
* The electrical properties measured and determined by LUXCO at its sole and absolute discretion.
Module Diagram
