Gems™ Liquid Level Sensors operate on a direct, simple principle. In most models, a float encircling a stationary stem is equipped with powerful, permanent magnets. As the float rises or lowers with liquid level, the magnetic field generated from within the float actuates a hermetically sealed, magnetic reed switch mounted within the stem. The stem is made of non-magnetic metals or rugged, engineered plastics. When mounted vertically, this basic design provides a consistent accuracy of ±1/8 inch. Multi-station versions use a separate reed switch for each level point being monitored.

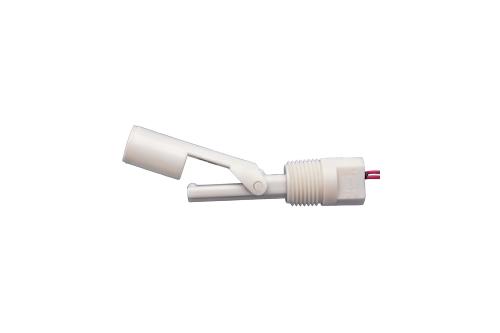

Side-mounted units use different actuation methods because of their horizontal attitude. The basic principle, however, is the same: as a direct result of rising or falling liquid, a magnetic field is moved into the proximity of a reed switch, causing its actuation.
LS-7 Series - Type 3
These low-cost units are ideal for high volume use in small tanks and vessels. Engineered plastics construction offers broad compatibility in water, oils, and chemicals.
Type 3 - Polypropylene, Nylon or Versplast
 |
|
ELS-1100 Series
These polysulfone level switch units are both compact and economical. They feature a variety of mountings, power requirements and electrical terminations to make it easy to find a perfect match for your application.
The ELS Level Switch Series is low cost, compact, optical, level sensors with built-in switching electronics. With no moving parts, these small units are ideal for a variety of point level sensing applications especially where dependability and economy are a must.
These level switch units are suitable for high, low or intermediate level detection in practically any tank top, large or small. Installation is simple and quick through the tank top, bottom or side. Solid state-switching ensures dependability over long service life.
The sensor offers ±1 mm repeatability and broad liquid compatibility. They are not recommended for use in any liquid that crystallizes or leaves a solid residue.
