Series K 4 Roll Plate Bending Machine
모델명
-
시리즈
Plate Bending Machine
자료
Catalog-MG SRL-Plate Bending Machine-Series K 4 Roll
구매정보
provider logo
MG SRL

이탈리아 철판 벤딩기 제조업체, Sheet Bending기계

연락처
+39 39-0172-691327
이메일
info@mgsrl.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
브랜드
-
SKU
129797
제품명
Series K 4 Roll Plate Bending Machine
모델명
-
사이즈
-
중량
-
제품 상세 정보

The new K series


This series, born from the research and experience of MG SRL, represents a NEW concept in the world of bending.


In fact it can be used as a normal 4 roll or as a 3 roll bending machine, with the particularity of having a very reduced pre-bending part compared to traditional bending machines. The already minimal straight part on our machines, of 1.8 times the thickness of the sheet processed, will be even shorter, and this can only be a practical and aesthetic advantage on the final product whatever it is. Not only that, the machine will be a variant of the PH model, with variable geometry.

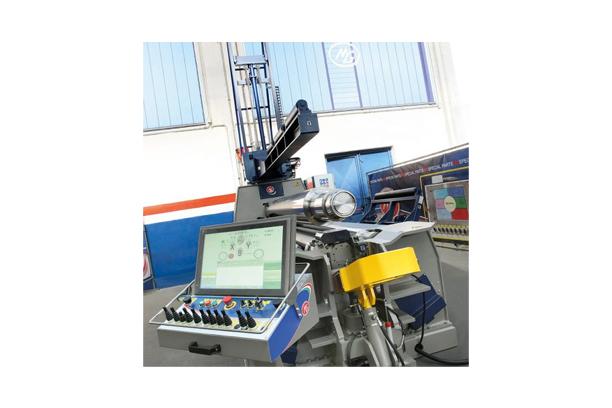

It is something that has never been achieved so far, that the market will see for the first time. The machine will be equipped with the numerical control Touch Command EVO that, again, as in all the MG models in which it is present, monitors the work of bending process to perfection. With the simple touch of the screen, the sheet parameters are entered and the control generates the program. The system monitors the coordinates that are executed with the utmost accuracy and corrects any errors.


On multi-diameter process, the speeds of the interpolated movements are selected completely automatically and are controlled in all conditions in real time.


Thanks to its versatility, EVO allows wireless communication, interconnection, data collection and analysis, as well as the visualization of the desired shape in 3D graphics.


The K series will be a new and unique model, but the MG philosophy will be the same, full reliability in the control of parallelism of the rolls, planetary gearboxes directly coupled on the rolls, with all the machine force concentrated in the bending process.




MG SRL
이탈리아 철판 벤딩기 제조업체, Sheet Bending기계
THE STORY The MG SRL was born in Fossano, in the Cuneo area, in 1959; founded by Giovanni Roccia and Bruno Giraudo, takes its first steps as a contracting workshop of the “Bongioanni Spa”. In 1981 the construction of bending machines for sheet metal and profiles began. A few years later, it allows to concentrate efforts and investments aimed at improving production. With a branch in Forlì, the leading company in the construction of sheet metal bending machines, has subsequently specialized under the guidance of the members Massimo Roccia and Giorgio Giraudo, sons of the founders, and Franco Barca who deals with the design in the branch. In 2010, with more than 60 employees – including many specialized technicians -, MG srl was the protagonist of the world scenario thanks to the creation of the largest grille ever built: the “MG32520Z”, it is 7,70 meters high, 7,10 meters wide, 13,70 meters long and weighs 350 tons, which allows it to bend sheets of sheet 3 meters wide 25 cm thick     TODAY In November 2011, MG srl becomes the protagonist of a technical and constructive renewal, thanks to the acquisition of Delsy Srl, currently 75% controlled, an Italian manufacturer of numerical controls, among the best known in the global panorama of the sector: thanks to this union, the MG machines become more reliable and beautiful, while maintaining the right quality / price ratio. With its 90 employees, on a surface of 6000 square meters covered and a total of 12,000 square meters of land, MG srl currently covers 60% of the Italian market and exports its machinery to the United States, Latin America, China, New Zealand, Emirates Arabic, Australia, Vietnam. MG bending machines are designed and manufactured to obtain performances equal to 3 times the diameter of their upper roll with 260N / mm2 yielding sheets and are able to meet any need for plate bending, through a wide range of models with useful working length from 500 mm to 8000 mm and capacity from 1 to 300 mm.       CERTIFICATES
