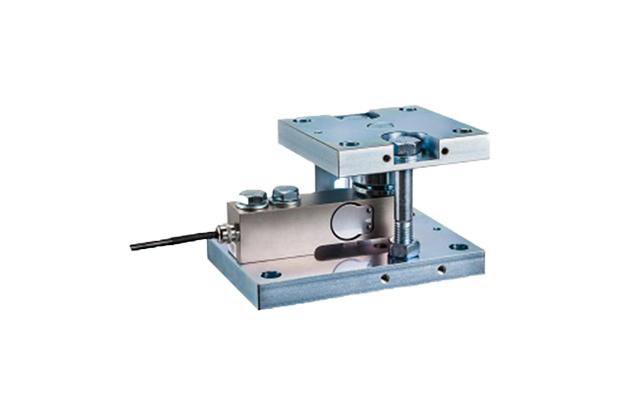

제품특징
- Ball type
- High resolution
- Easy replacement
Material
OP1 : Steel
OP2 : Stainless steel
Manual
1) Rise the Upper Plate by using the Supporters at both sides and join it with the Base plate
2) Unite the upper bolt fo the supporter and Place the upper ball cup over the steel Ball
3) Check the level of the load cell
제품 피수
Capacity | A | B | C | D | E | F | G | H | I | J | K | L |
---|---|---|---|---|---|---|---|---|---|---|---|---|
250 kgf | 90 | 120 | 90 | 120 | 60 | 14 | 20 | 107 | 20 | 15 | 150 | 180 |
500 kgf | ||||||||||||
1 tf | ||||||||||||
2 tf | ||||||||||||
3 tf | 110 | 150 | 110 | 150 | 80 | 18 | 25 | 135 | 30 | 20 | 190 | 230 |
5 tf |
