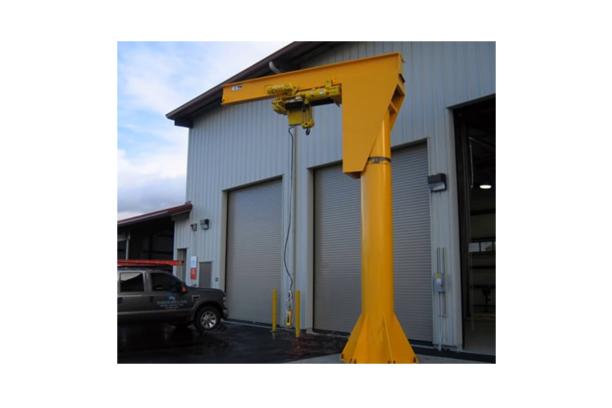

Free Standing Jib Cranes

Free Standing Jib Cranes are SGCRANES most versatile crane. They are perfect to place underneath large bridge cranes, in open areas where they can serve several work stations, in outdoor application such as loading docks, or in machining and assembly operations where they can be overlapped with other jibs to provide staged operation.

• Capacity up to 5000kg
• Coverage: circular, Standard spans to 6m
• 360 degree rotation
• 3 Mounting styles; base plate mounted, sleeve mounted, insert sleeve mounted

Wall Bracket Jib Cranes

Wall Bracket Jib Cranes are the most economical means of providing hoist coverage for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system.

• Capacity up to 5000kg
• Coverage: circular, Standard spans to 6m
• 200 degree rotation
• Ideal for swinging around obstacles or under obstructions

Wall Cantilever Jib Crane

The Wall Cantilever jib crane provides hoist coverage and 200° rotation for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system. The jib has the advantage of providing maximum lift for the hoist, since it can be installed very close to the underside of the lowest ceiling obstruction.

• Capacity up to 5000kg
• Coverage: circular, Standard spans to 6m
• 200 degree rotation
• Requires a structurally adequate wall or column to mount to Welded or bolted connection depending on bracket centers

This jib crane is floor supported, top stabilized, and is capable of 360° rotation via a top and bottom bearing assembly. The efficient design usually requires no special foundation makes them the most cost effective of the 360° rotation jib styles.

• Capacity up to 5000kg
• Coverage: circular, Standard spans to 6m
• MT400 Full Cantilever - Provides maximum amount of lift where full use of available headroom is desired
• MT450 Drop Cantilever - Jib boom can be placed at a specific height to clear overhead obstructions
• 360 degree rotation
