Feature of Product
• 35W, 60W, 100W, 150W, & 250W models; each with a large power reserve
• 8 module input bays, accepts up to 2 signal-processing output modules or up to 8 input modules
•Four priority levels
•4-ohm, 8-ohm, 25V, & 70V outputs
• Rack mountable w/ kit (sold separately)
•5 models ranging from 35W to 250W each; a mixer-only version (VMIX) is also available
•Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
•8 module bays
•Wide selection of advanced plug-in modules (modules sold separately)
•4 levels of priority between modules
•2 module bays capable of handling plug-in signalprocessing output modules
•11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch
•Motorized master volume control can be remotely operated
•Lockable switch permits user to select either transformer-coupled outputs or a direct lowimpedance output
•5-position barrier strip, with clamping washers, provides connections for speaker loads
•Bridging In/Out connector
•External access to priority mute buses
•Bridging jack and Mute terminals join multiple Power Vector amps and mixers together
•Independent volume control for each of the eight module bays
•Two-color LED for each channel indicates input signal or clipping
•Bass and treble control with bypass switch (located in module bay 6)
•125 Hz Low Cut switch (located in module bay 6)
•Signal-processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input
•Pre-EQ, unbalanced, buffered output signal (“post” all unit controls, but “pre” any external “Insert” equipment connected)
•Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
•8 module security cover/filler plates included with amplifier (PVMC)
•Push-button remote volume control panel (Model RVCP, sold separately)
•Security cover to selectively protect volume, bass, and treble controls (Model PVSC, sold separately)
•Rack mountable (with rack mounting kit RPK87, sold separately)
•2 rack spaces high (3-1/2″)
•Listed to UL Standard 60065 for U.S. and Canada
Feature of Product
•100W, 150W, & 250W models; each with a large power reserve
•8 module input bays, accepts up to 2 signal-processing output modules or up to 8 input modules
•Four priority levels
•4-ohm, 8-ohm, 25V, & 70V outputs
•Wall-mountable with Back Box and Door (sold separately)
• 100-,150-, and 250-watt models, each with a large power reserve
• Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
•8 module bays
•Wide selection of advanced plug-in modules
•2 module bays capable of handling signal processing plug-in output modules
•4 levels of priority between modules
•11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch
•Adjustable output level limiter with limit indicator
•Tape output available on front of unit
•Optional front-mounted input combo jack with 1/4″ stereo phone and female XLR capabilities
•Motorized master volume control can be remotely operated
•Bass and treble controls with center detent
•Two-color LED for each channel indicates input active/clipping
•Switch permits user to select either transformercoupled outputs or a direct low-impedance output
•Bass and treble control bypass switch (located in module bay 6)
•125 Hz Lo-cut feature (switch located in module bay 6)
•5-position barrier strip, with clamping washers, provides connections for speaker loads
•Master mute function overrides all audio from the mixer section of the amplifier
•Screw terminal for master mute and remote volume control functions
•Each of the 8 module bays has an associated independent volume control
•Remote volume control panel (RVCP) (sold separately)
•Requires flush-mount (Model BBF) or surfacemount (Model BBS) back boxes (sold separately)
•Requires front cover door (WMAD sold separately)
•UL and CSA Listed

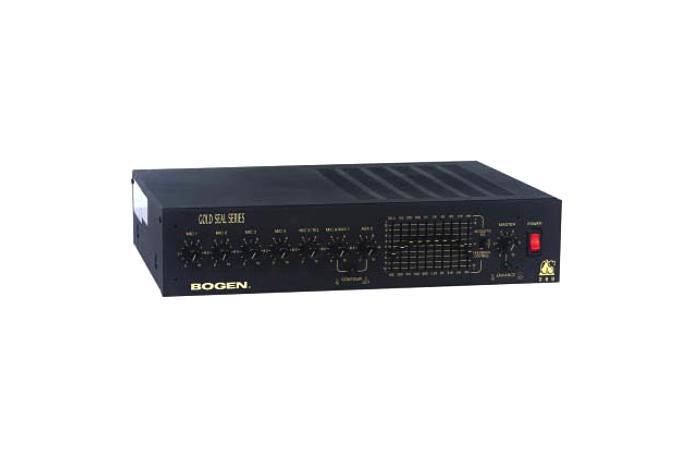

Feature of Product
•35W, 60W, 100W, 150W, & 250W models
•7 inputs; 4 MIC (Lo-Z), 1 AUX (Hi-Z), 1 MIC/TEL, 1MIC/AUX
•4-ohm, 8-ohm, 25V, 25VCT, and 70V outputs
•Dual-function, 10-band graphic equalizer (acoustic EQ/feedback control)
GS35, GS60, GS100, GS150
•4 dedicated MIC inputs
•1 selectable MIC/TEL input
•1 selectable MIC/AUX input
•1 dedicated AUX input
•4-ohm direct coupled output
•8-ohm, 25V, 25VCT, and 70V transformercoupled outputs
•Rack mountable – 2RU package
•Dual-function, 10-band graphic equalizer (Acoustic EQ or Feedback Control modes)
•True loudness contour function
•Audio Enhancement circuit for improved intelligibility
•Switchable phantom power supply (15V DC)
•Variable AUX input muting
•Remote master volume control capability
•Input muting via contact on all inputs
•Voice activated AUX muting on TEL input
•AUX fade back after TEL page
•Pre-amp Out/Power amp In (insert) connections
•Booster amp output connection
•Tape output connection
•Balanced line driver output (using WMT1A accessory)
•Low-cut filter for MIC channels
•Tamper-resistant front cover available (GSTRC)
•Rack mounting kit available (GSRPK)
•Remote volume control available (GSRVC)
•Also available – GS250 (250 watts)
• 4 Dedicated MIC inputs
•1 Selectable MIC/TEL input
•1 Selectable MIC/AUX input
•1 Dedicated AUX input
•4-Ohm direct coupled output
•8-Ohm, 25V, 25VCT, and 70V transformer-coupled outputs
•Rack mountable – 2RU package
•Dual-function 10-band graphic equalizer (Acoustic EQ or Feedback Control modes)
•True loudness contour function
•Audio Enhancement for improved intelligibility
•Switchable phantom power (per MIC input)
•Variable AUX input muting
•Remote master volume control capability
•Automatic level control
•Input muting via contact closure on all inputs
•Voice-activated AUX muting on TEL input
•AUX fade-back after TEL page
•Pre-amp OUT/Power amp IN (insert) connections
•Booster amp output connection
•Tape output connection
•Balanced line driver output (using WMT1A accessory)
•Low-cut filter for MIC channels
•3-Speed fan cooling
•Thermal and overload protection
•UL and C-UL listed
•Tamper-resistant front cover (GSTRC) available
•Rack mounting kit (GSRPK) available
•Remote volume control (GSRVC) available
Feature of Product
•10W, 20W, 35W, 60W, & 100W models
•4 inputs (C35/60/100 models): 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
•3 inputs (all C10/C20 models): 1 MIC (Lo-Z), 1 TEL, plus 1 selectable MIC or AUX
•4-ohm, 8-ohm (not on C100), 16-ohm, 25V, & 70V outputs
C10, C20
•C10 & C20 have 10W and 20W output power, respectively
•Transformer isolated 4Ω, 8Ω, 16Ω, 25V and 70V output taps
•Rear panel auxiliary receptacle
•One dedicated MIC 1 input — Lo-Z balanced
•One switchable MIC 2/AUX 1 input
•Contact muting of AUX input
•Transformer-isolated 600Ω telephone paging input
•Separate rear panel-mounted TEL volume control
•Voice-activated muting of AUX input by TEL input
•Variable trigger threshold for voice activation
•Optional wall mount kit
•Optional impedance matching transformer 10k/600Ω
•Listed to UL Standard 60065 for US and Canada
C35, C60, C100
•3 models: 35, 60, and 100 watts
•4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
•Each input controlled by an independent volume control
•Treble and bass controls
•AUX muting by external contact closure for push-to-talk microphones
•TEL input for telephone paging applications
•TEL input voice-activated (VOX) mute over AUX input
•Variable threshold for TEL input voiceactivated AUX mute
•Outputs for 4-ohm (direct), 8-ohm (C35 & C60 models only), and 16-ohm, 25V and 70V speaker systems (transformer coupled)
•Output jack to connect a recording device or booster amplifier
•Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
•Thermal protection and electronic shutdown
•Rack mountable with accessory mounting kit (model RPK50)
•Listed to UL Standard 60065 for U.S. and Canada
