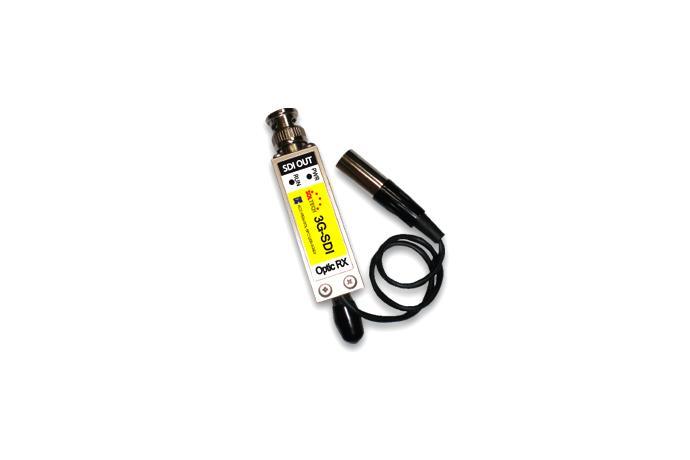

Transmits Multi-rate 3G-SDI Digital Video over 1 Fiber
- Transmits Multi-rate 3G-SDI Digital Video over 1 Fiber
- Extends up to 20km at 2.97Gbps
- 3G-SDI BNC connector and ST connector
- Re-clock Data Rates 270Mbps, 1.485Gbps, 2.97Gbps
VIDEO | - Number of Channel | 1 |
- Video Format | SMPTE 292M,259M,297M,305M,310M,M2S,DVB-ASI at 270Mbps | |
- Input/Output | 1/1 | |
- Reflected Wear | >15dB | |
- Input/Output Level | >380mVp-p / 800mVp-p±10% | |
- Connector Type | BNC 75Ω | |
Optical | - Wave-Length | 1310/1550nm |
- Fiber Type | Single mode, Multi mode | |
- Reflected Wear | >14dB | |
- Out Level | -7~-23dBm | |
- Input Power | -20dBm | |
- Connector Type | ST/PC | |
Power/Environmental | - Power Adaptor | DC 5V 1A |
- Temperature | -20℃~70℃ | |
- Humidity | 0%~95% | |
Mechanical | - Dimension | 15.5(W)×85(D)×16.5(H)mm |
- Weight | 511g (Full-Package) |
Model Name | Description |
SFC1200 3G-SDI | Transmits Multi-rate 3G-SDI Digital Video over 1 Fiber |
