The Painter’s Choice.

Popular with Painters who like to clean their spray gun quickly and effectively in the automatic tank to get ready for the next paint job and who also like to regularly disassemble their spray gun to detail clean the components. Keeping the spray gun in good working order extends the life of their spray gun.

Models

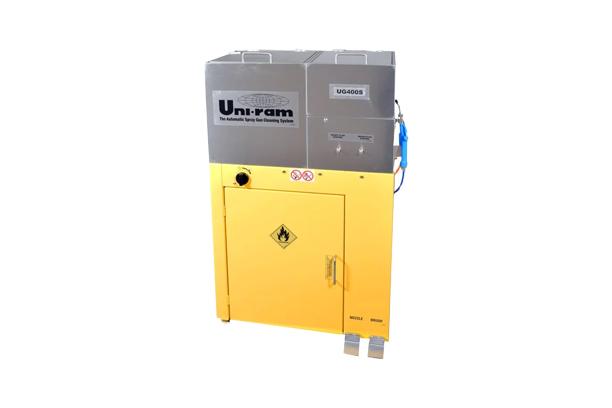

• UG400S: for cleaning solvent borne spray guns.
• UG400W: for cleaning waterborne spray guns.

Features

Automatic Tank

• 2 minute timer to remove heavy coatings and dried paint.
• Accommodates all makes of disposable cup adapters.
• Conical plug with air to keep air passage free from liquid.
• Washing is activated by a wash timer and powered by a long-lasting dual-diaphragm pump that outputs 3.7 gallons of solvent per minute.
• Stainless steel wash tank with 9 spray jet manifold for long life; mounting adapters to distribute solvent to the paint channel of the spray gun.
• Pump halts immediately, if the lid is raised during cleaning, to prevent exposure to the liquid, providing a safe operation.
• The funnel and waste pail conveniently collects waste paint before cleaning the spray guns.

Manual Tank

• Includes brushes and other cleaning tools to clean components of spray guns (KIT-GCTOOLS).
• Flow-through brush, activated by a foot pedal.
• Spigot, activated by a foot pedal.

Operation

Automatic Cleaning

• Place the spray gun on the mounting adapter in the cleaning tank and turn the automatic timer. A  4 inch diaphragm pump drives cleaning liquid up through 1) the mounting adapters to flush the paint channel of the spray  gun and 2) through 9 spray jets to wash overspray from the outside of the gun. Solvent drains back into the customer supplied pail, for reuse, a green approach.
• Press the air rinse button to flush the wash liquid and then press the clean rinse button to send 100 CC of clean solvent through the jets to rinse the spray guns. 1 spray gun is cleaned in one minute.

Manual Cleaning

• A painter can disassemble spray equipment and detail clean the parts, first with a  brush from the brush kit and then rinse under the spigot.

Specifications

• Requires minimum of 85 PSI, 2 CFM of clean dry air. Pressure regulator is built in.
• Pump for automatic wash: 4″ dual diaphragm pump with unique shuttle valve for long life, output is 3.7 gal/min (14 L/min).
• Pump for brush: 2″ dual diaphragm pump with unique shuttle valve for long life, output is 1.9 gal/min (7 L/min).
• Cleans paint from the following types of spray guns: gravity, siphon, pressure and cleans pots.
