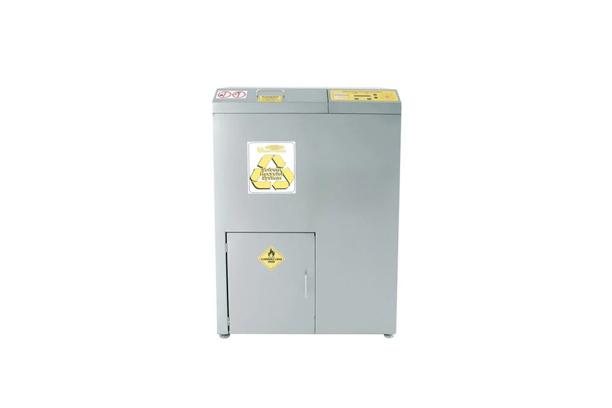

The URS900 solvent recycler provides a shop with clean recycled solvent every day. Typical solvents include paint thinner, gun wash solvent and acetone. With a Uni-ram solvent recycler the shop’s environmental footprint shrinks and the shop saves money. Solvent purchases and the cost for used solvent transported off-site drop by approximately 90%.

The URS900 provides 6.6 gal of clean recycled solvent from each recycling batch.

Additional Models

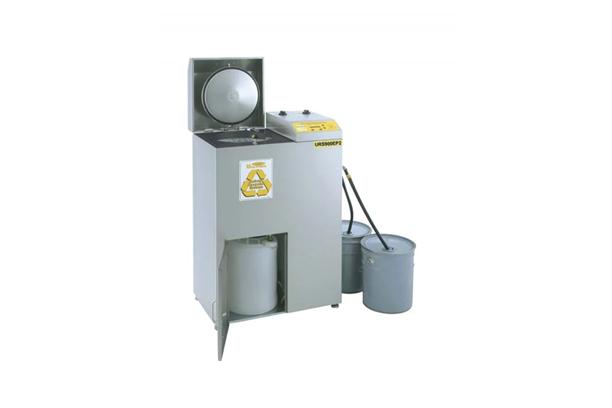

URS URS900EP2

Is the same as URS900 except dirty solvent is pumped directly into the distillation tank and clean recycled solvent is pumped from the receiving pail to an external clean container. Pumps are activated by turning a timer.

Benefit

No pails to lift, no solvent to pour. Shop safety improves, less back strain and less solvent spillage.

The URS900EP2 is designed to connect to and recycle used solvent from E-model spray gun and pressure pot cleaners such as UG4000E, UG6000E, UG5000EW, UG6000EH, UPP6500E and UG7500E. These units are equipped with special pails and hoses to permit easy flow of solvent to and from the solvent recycler.

The transfer system of the URS900EP2 includes:

Two dual diaphragm pumps, two 5-minute timers, a receiving pail, hoses and fittings.

URS900SS

Is a URS900 with a stainless steel condenser and fittings to resist acidic and corrosive solvents. The URS900 has a copper condenser with brass fittings.

WATER: Use the URS500SS to recycle water or used solvent that includes water. Water can corrode a copper condenser but not a stainless steel condenser.

URS900EP2SS

Is the same as URS900SS except dirty solvent is pumped directly into the distillation tank and clean recycled solvent is pumped from the receiving pail to an external clean container. Pumps are activated by turning a timer.

The URS900 is for owners that want features not offered on the basic URS500 solvent recycler. Features on the URS900, not on the URS500 are:

• Recycling is faster with the URS900 due to a 2100W heating element vs 1500W heating element on the URS500. It also has a larger cooling condenser.
• Sophisticated solid-state microprocessor controls the work flow and continuously monitors operating parameters. The computer display (LCD) shows the set point and real-time temperatures at the tank and condenser. Special features in the computer menu allow for:

1) lowering of the heater wattage to make the boiling phase less vigorous; this is important for low boiling point solvents such as acetone.

2) increasing the post heat time to make the solvent residue dryer thus increasing recycling efficiency.

• Complete self-diagnostic system; sensors monitor the operating system; faults are described in English messages for easy diagnostics. Faults are indicated by flashing lights on the URS500.
• Odometer logging to tell how much solvent has been processed and money saved.

Features

• Distillation by vaporization and condensation.
• Automatic or timed shut off.
• Outer cabinet and lid are made from 304-grade stainless steel for long life.
• Sophisticated solid-state microprocessor controls the work flow and continuously monitors operating parameters. Complete with a digital self-diagnostic system.
• Direct electric heating with no oil to change or refrigerant to service for lower maintenance.
• High efficiency copper condenser, air cooled with motor driven fan; a stainless steel condenser is also available on model
• URS900 comes with 3 heat resistant liner bags to capture residue, 2 gaskets and an explosion proof plug.

Safety Features:

• Certified to UL safety standard 2208 and CSA standard 22.2 no. 30 and 88 by ETL for use with solvents in Class 1, Division 1, group D locations. UL2208, with many built in safety programs, is the safety standard for solvent recyclers.
• Additional safety features include the lid pressure relief system, safety cover and optional lid lock.

The work shop of all collision repairs shop is classified as a class 1 division 2 by the National Electrical Code, due to the intermittent presence of solvent vapors. The paint mixing room is classified as the more stringent class 1 division 1 area, as solvent vapors are normally present.  Uni-ram solvent recyclers are approved for use in all collision repair shops, other class 1 division 1 and 2 locations and non classified locations.

IMPORTANT SAFETY AND USAGE ADVISORY

Do not recycle solvents that includes Nitrocellulose due to its low auto ignition temperature and Peroxides due to its thermal decomposition. Check the Safety Data Sheet of both the solvent and waste material for the presence of these 2 substances.

Specifications

• Speed: 4-6 hrs.
• Power Supply: 220-240V, 2100 W heater.
• High efficiency copper condenser (stainless steel condensers are available).
• Digital display with an easy to use menu.
• Microprocessor: Controls work flow. Performs self-diagnostics explained with plain-English messages.
• Automatic or timed shutoff.

Shipping Dimensions: 30″w x 20″d x 45″h (76cmW x 50cmD x 114cmH) Shipping Weight: 150 lb (68kg)

Product Dimensions: 28″w x 17″d x 43″h (71cmW x 43cmD x 109cmH)

Consumables

• a high-temperature liner bag, supplied as a 10-pack (part number LB900C-10), is required for every recycling batch.
• Replace the lid gasket in your unit at least once every 6 months. Part numbers are shown below.
