DURAHEAT ID In-Line Heater
The DURAHEAT IPA In-Line Heater provides high purity and safety heating of IPA and solvent through indirect contact for semiconductors.

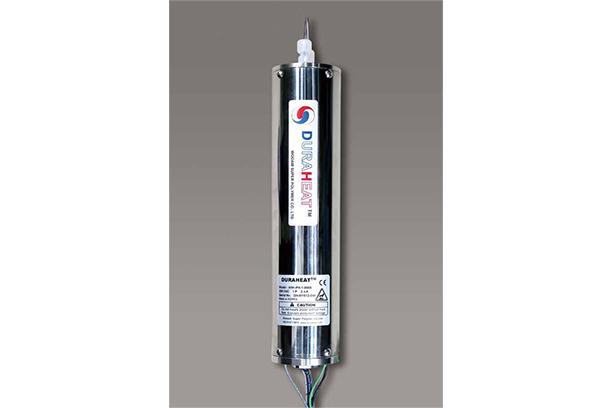

Specifications_0.5KW
- Size : ø76 x 310mm(H)
- Heater : 0.50KW, 208V, 2.4 AMPS
- Ramp Up Time 5.6 min for IPA 0.135 LPM & AT 60°C
- Temp. Tolerance : ±0.5°C
- IPA Tube : PTFE, 1/8″, 3/8″ Custom connections available
- Housing Material : SUS 304
- Pressure Rating : 5Kg/Cm G@80°C
- ΔP≤0.2Kg/㎠ @ 0.135 LPM -1/8″
- High-limit TC : “k: Type (175°C Max)
- AL Body TC: Pt. 100Ω (125°C Max)
- Fuse : 167°C
- Insulation : 15mm
- Surface Temp., : 58°C Max

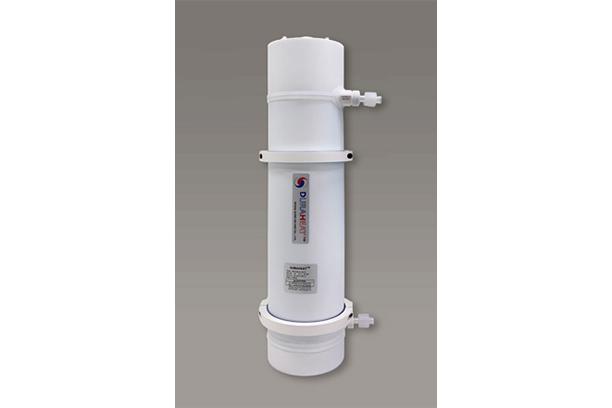

Specifications_6.0KW
- Dimension : ø160 x 650mm(H)
- Heater : 6.0kW (2.0kWx3ea), 208V, 3ø
- Heater Body Material : Aluminum+PEO COATING
- Housing Material: PTFE
- Tube Material : PTFE
- Temp. Tolerance: ±0.5°C
- IPA In/Out Nozzle Size: W4, (1/2″)
- N₂ Purge In/Out Nozzle: W, (1/4”)
- (2kPa Max. Slightly Positive Press)
- Design Pressure: 5.0 KG/C㎡G@80°C
- Pressure Loss ≤ 0.6kg/C㎡G@10LPM
- AL Body Sensor: “K”-Type
- AL Body Bimetal: 200°C Max
- Surface Temp. : 60°C Max
- Warranty: 1 Year
