product Image
Model Name

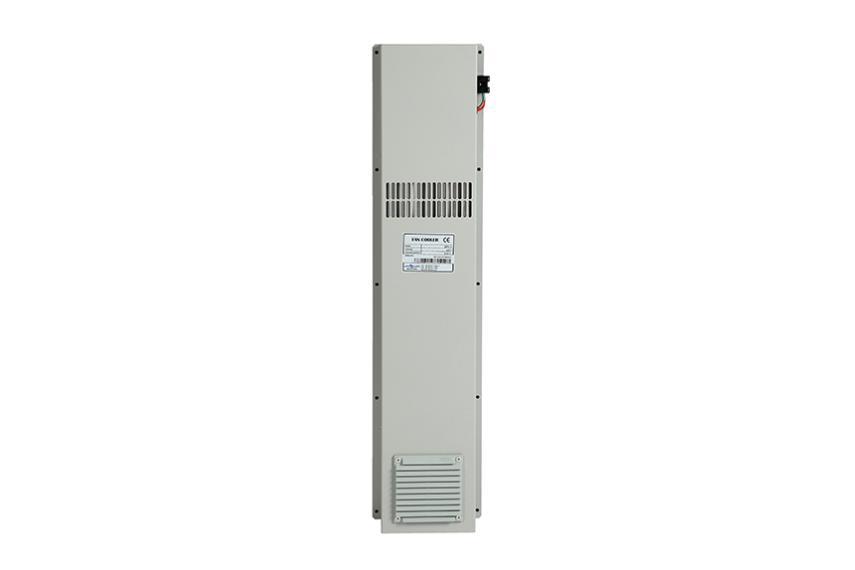

AFC-Series
Series
Fan Cooler
Data
-
Manufacturer information
provider logo
AIRMAJOR

Control panel air conditioner, Fan cooler, Electric dehumidifier, Fan, Filter, Coolex

Problem with product info?
Update request
Manufacturer
AIRMAJOR
Brand
-
SKU
78794
Product Name
-
Model Name
AFC-Series
Size
-
Weight
-
Product Details

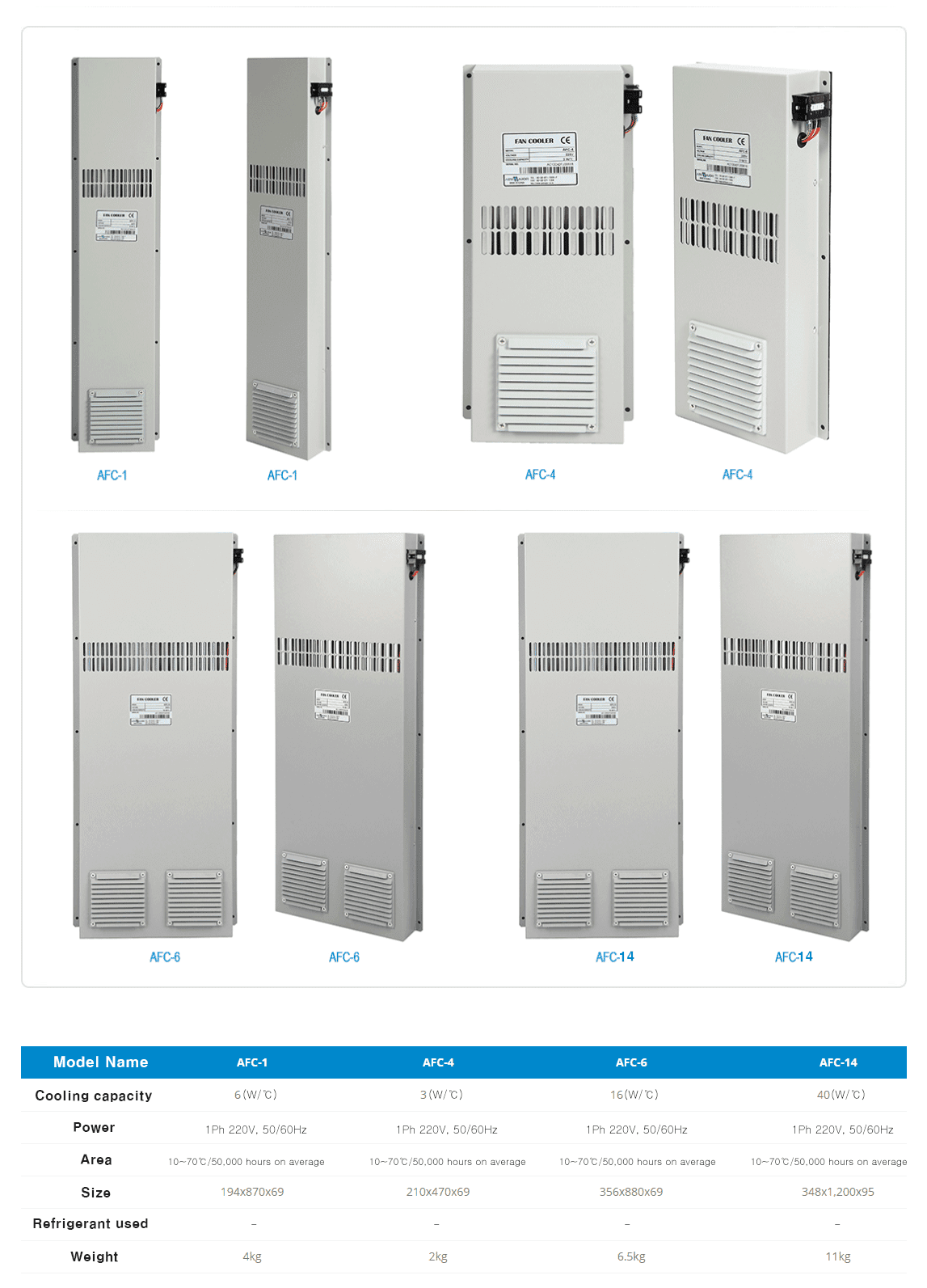

AIRMAJOR  AFC-SeriesAIRMAJOR  AFC-Series 1AIRMAJOR  AFC-Series 2AIRMAJOR  AFC-Series 3

Type AFC-1 AFC-2 AFC-4 AFC-6 AFC-7 AFC-9 AFC-11 AFC-12 AFC-14
Cooling capacity(W) 6 20 3 16 12 28 18 32 40
Circuit breaker capacity 2A 2A 2A 2A 2A 2A 2A 2A 2A
Rated power consumption 26W 52W 26W 52W 52W 152W 76W 152W 152W
Dimension(WxHxD)(mm) 194x870x69 376x870x69 210x470x69 356x880x69 356x650x69 365x900x95 205x900x95 348x900x95 348x1,200x95
Weight 4kg 7kg 2kg 6.5kg 5kg 10kg 5.5kg 9kg 11kg
Fan Q'ty 2 4 2 4 4 4 2 4 4
Input power 1Ph 220V, 50/60Hz
Temp. range/ motor service life 10~70℃, Average 50,000hr (ambient temp. 20℃ / humidity 60%)
Attachment method Heat exchanger type / Side attachment type

Features


What is AIRMAJOR Fan Cooler?

This is to circulate the heat generated inside control panel and the cold air of outside through each fan motor inside fan cooler. This is an indirect cooling method cooler that approaches the internal temperature of control panel to the temperature of external air without flowing the cold air of outside directly as the air can be contacted to cooler fin unit through this process.



Features of AIRMAJOR Fan Cooler

Filter can be used again by cleaning with neutral agent or removing the dust with compressed air.

Using a ball bearing fan motor, the average life of Fan Cooler is 50,000hr. (ambient temp. 20℃, humidity 60%)

Available to use in high temperature range 10~70℃.

A light-weighted product, easy to attach/detach and convenient maintenance

Safety is guaranteed due to the use of fan guard and easy A/S for motor

This satisfies INT Ip54, EXT IP 4.

AIRMAJOR
Control panel air conditioner, Fan cooler, Electric dehumidifier, Fan, Filter, Coolex
AIRMAJOR specializes in industrial cooling equipment and strives to make excellent products.   In particular, our panel coolers are used for the highly integrated control panels of systems such as NC machine tools. machining centers. robots and unmanned factory automation communication base stations.   Such control panels require small spaces and sealing and have a variety of functions.   Therefore control panels in these environments are gradually damaged due tohigh temperatures, high humidity and dust penetration from the inflow of external air.   It is common to see cases where the controller malfunctions and stops functioning due to an error with the control boards or the stoppage of such equipment.   Lots of companies suffer enormous losses and damages from not using coolers for their control panels   To prevent such losses and damage, we have developed and manufactured a cooler based on our accumulated technology that removes heat and moisture from inside the control panel. We are committed to developing products that can improve and protect the reliability of your production facilities.   In addition. AIRMAJOR will make a leap forward to become a company loved by its clients through ceaseless research and development with the goal of growing into a maior company in the air-related fieldWe look forward to your unwavering support,
