MINIATURIZATION AND HIGH SPEED IN THE HARSHEST ENVIRONMENTS

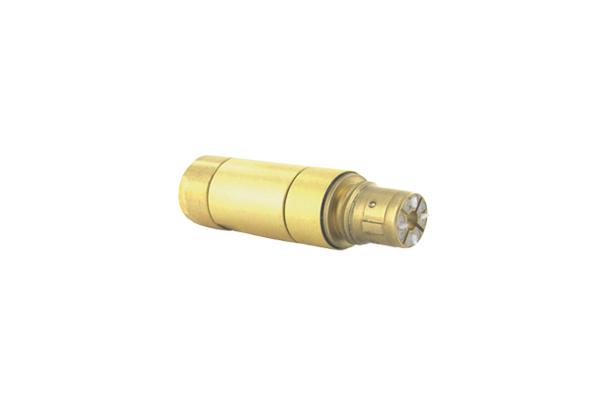

Amphenol µCom-10Gb+ series (pronounced, Microcom) is designed to meet industry demands for miniaturized connectors with rapid transmission speeds and high resistance in extreme environments. Environmentally tested to MIL-DTL-38999 Series III military specifications, these miniature connectors with a 15mm (.59˝) max. external diameter can exceed 10Gb/s per IEEE 802.3an-2006 even in the harshest environments. A 2000 mating cycle coupling provides end users with one of the most rugged and micro sized interconnect solutions on the market.
Features and Benefits
- 500h salt spray RoHS compliant plating
- Solder, crimp and PCB contact styles
- IP68 sealing for mated/unmated receptacles
- Temperature range: -55ºC/ +125ºC
- Available in threaded and push pull style plugs
The rugged IP68 design features four completely insulated twisted wire pairs throughout the connector to minimize cross-talk. A threaded coupling mechanism provides high vibration resistance. The design provides IP68 sealing for mated and unmated receptacles with 500 hours of salt spray resistance.
Features
- 10Gb+ exceeds 10Gb/s Ethernet following IEEE 802.3an-2006 : 10GBase-T
- CAT.6A connector according to TIA568C.2 and ISO/IEC11801 standard
- Environmental testing based on MIL-DTL-38999 series III military specifications
- Miniature : 15 mm(.59") max external diameter
- 4 pairs totally insulated throughout the connector
minimum cross-talk between the four pairs - Patent pending special interfacial shapes
minimum perturbation at the interface of each pair - Thread coupling mechanism
2000 mating cycles & high vibration resistance - IP68 sealing mated and unmated for PCB receptacles
Materials & Finishes
Electrical Data
60 Hz
Mechanical
| Cable Used for cordsets CAT 7 HFFR according to EN 50288-4-2 |
 |
- Stranded bare copper wire (26 AWG)
- 4 screened twisted pairs: 2 wires twisted to a pair, Aluminate foil overlapped
- Shield braiding of tinned copper wires, about 80% coverage
- Strain member of Kevlar
- Jacket in black Polyurethane (PUR), glossy finish, acc to DIN VDE 0282
- External diameter 7.0 +/-0.3 mm
- UV & Hydrolysis resistant, Halogen free, RoHS compliant
- Max Pull force: 800 N, Weight : about 54 kg/km
- Temperature : - 40°C to + 85°C (- 40°F to + 185°F)
- Min. bending radius allowed: repeated 8 x 0, single 4 x 0
