This product is manufactured by
ANGELAQUA
TOP
Model Name
DY101CFP-A
Data
-
Manufacturer information
ANGELAQUABubble spreader manufacturer, Platen high pressure & ceramic high pressure spreader, Low pressure spreader, Flowmeter and more
Problem with product info?
Update request
Manufacturer
ANGELAQUA
Brand
-
SKU
53932
Product Name

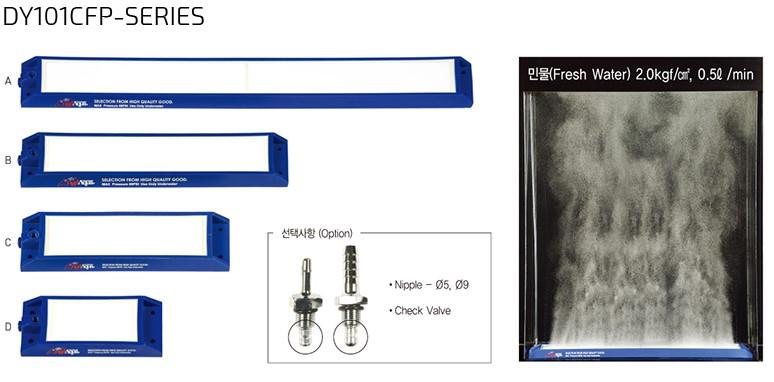

Ceramic Flat Type High Pressure Air Stone (Plastic Case Type)
Model Name
DY101CFP-A, DY101CFP-B, DY101CFP-C, DY101CFP-D
Size
-
Weight
-
Product Details

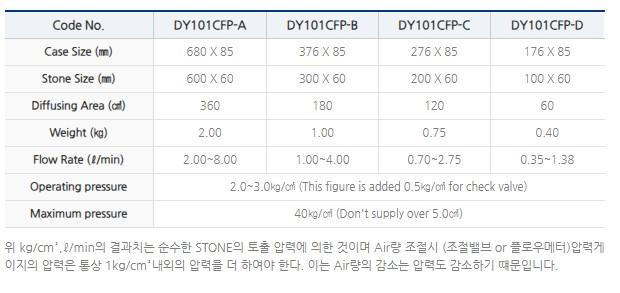

Specifications
| Code No. | DY101CFP-A | DY101CFP-B | DY101CFP-C | DY101CFP-D |
| Case Size (㎜) | 680 X 85 | 376 X 85 | 276 X 85 | 176 X 85 |
| Stone Size (㎜) | 600 X 60 | 300 X 60 | 200 X 60 | 100 X 60 |
| Diffusing Area (㎠) | 360 | 180 | 120 | 60 |
| Weight (㎏) | 2.00 | 1.00 | 0.75 | 0.40 |
| Flow Rate (ℓ/min) | 2.00~8.00 | 1.00~4.00 | 0.70~2.75 | 0.35~1.38 |
| Operating pressure | 2.0~3.0㎏/㎠ (This figure is added 0.5㎏/㎠ for check valve) | |||
| Maximum pressure | 40㎏/㎠ (Don't supply over 5.0㎠) | |||
Applications
ㆍWaste water treatment: Supplies oxygen to increase BOD and COD in rivers and small or large ponds.
Product Features
ㆍLow oxygen consumption and high fusion rate due to micron air bubbles. Produces 100-400 microns (exceeds recommended operation range by 40% and depth by 1m)
ㆍFlat design for minimal rising air bubble coalescence
ㆍCountercurrent prevention equipment
ㆍSlim design does not interfere with fish netting and minimizes risk of injury
ㆍThin profile can be fastened down, leading to a high dissolved oxygen rate
ㆍSpecial material ceramic baked at 1300°C
ㆍPorous: no corrosion or abrasion
