PRINTING SPECIFICATION

• METHOD : Thermal Transfer and Direct Thermal
• SPEED : 152 mm/sec
• WIDTH : 104 mm (4.1inch)
• PRINT LENGTH : Max. 1,250 mm (49.2inch)
• RESOLUTION : 203 DPI (8 dots/mm)

PAPER SPECIFICATION

[ PAPER ]
• TYPE : Label, Tag, Continuous, Fanfold
• WIDTH : 18~118 mm (0.7inch~4.64inch)
• THICKNESS : 0.06 ~ 0.20 mm
• SIZE : 127mm (5.0inch)

[ RIBBON ]
• TYPE :Thermal Ribbon(Wax, Resin, Hybrid)
• WIDTH : 33 mm ~ 110 mm (1.3 ~ 4.3inch)
• LENGTH : 360M, Ø 67 mm (2.63inch)

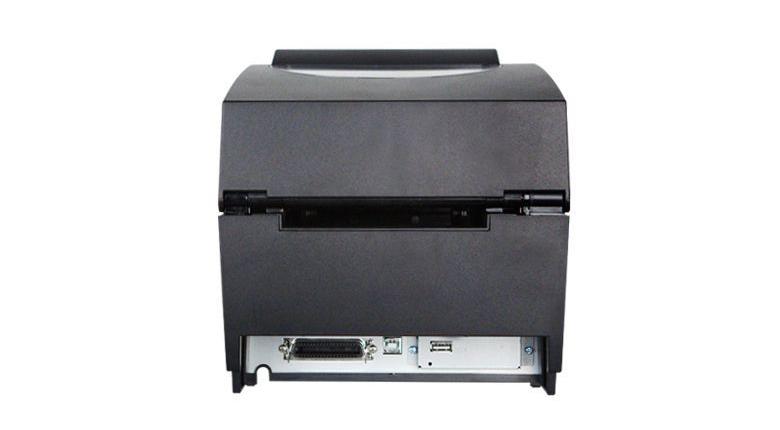

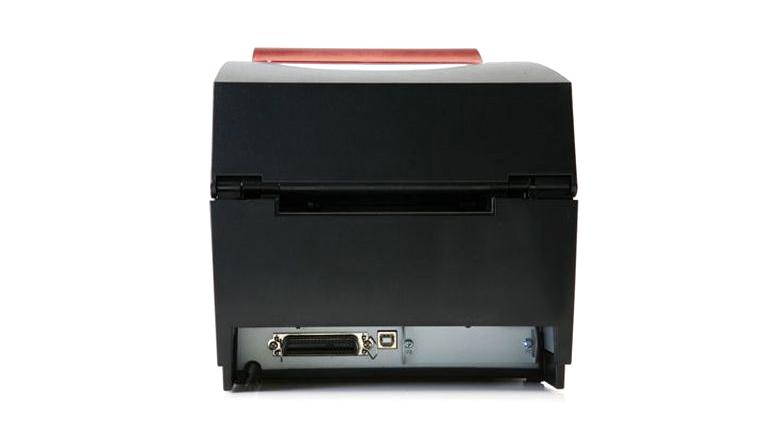

INTERFACE

• STANDARD : Parallel(Centronics 36pin), USB

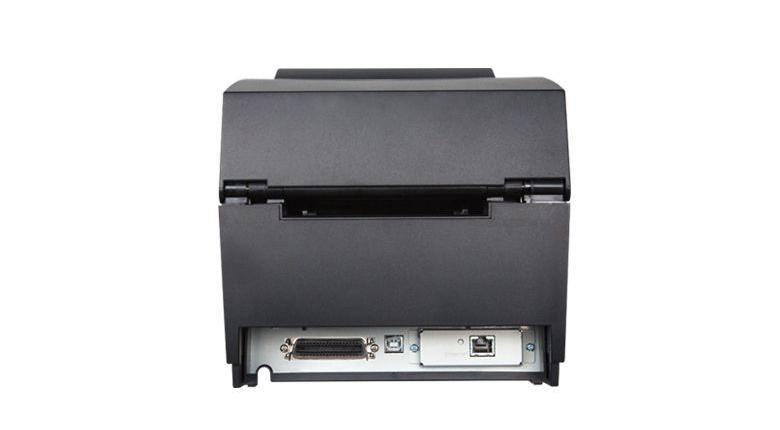

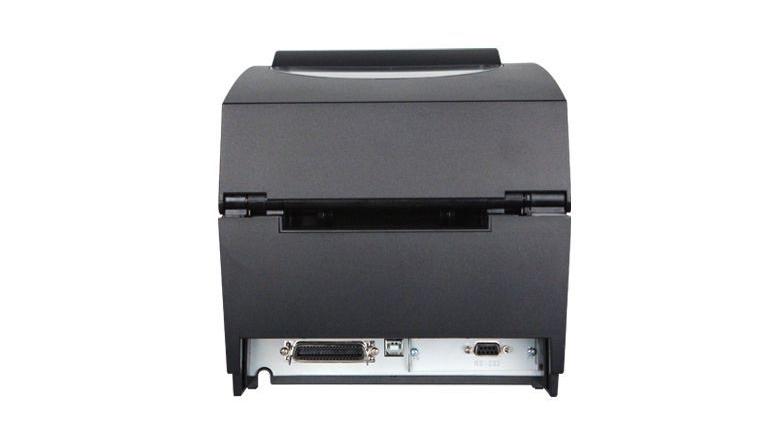

• OPTION : Serial(RS-232C), Ethernet, Wi-Fi(802.11b)

RFID

[ SUPPORT TAG ]
• ISO 15693, ISO 14443A(Philips, Infineon, Texas Instruments), Philips'I-Code® II, TI's Tag-it®

[ RF POWER ]
• 10~27dBM

[ MODULATION ]
• ASK

[ RFID Spec Supported ]
• Auto Error Check (100% verifying after printing if tag is defective)

Key Feature

- Multi protocol RFID Reader

- B21R(13.56MHz) ISO 15693, ISO14443A

- Stable & durable, cost savings

- Thermal transfer and direct thermal printing

- High speed 152mm per second

- paper width adjustable from 18mm to 118mm

- Flexible transponder : 12x28mm to 100x150mm

- Standard interfaces port : Parallel & USB 2.0

- Serial, Ethernet, Wi-Fi(802.11b/g) available(Option)

- Auto check error
