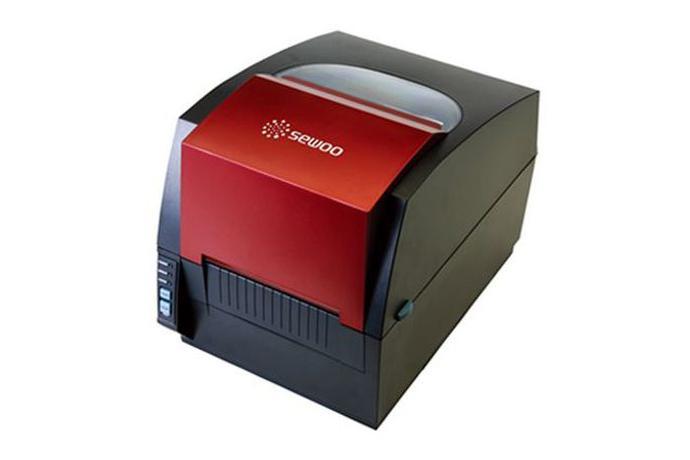

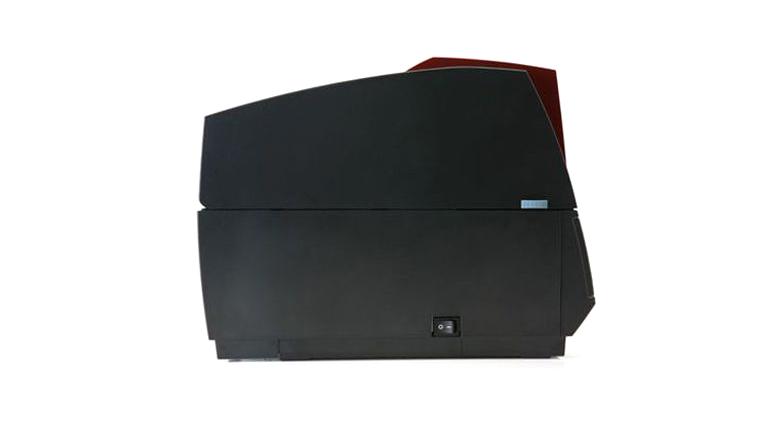

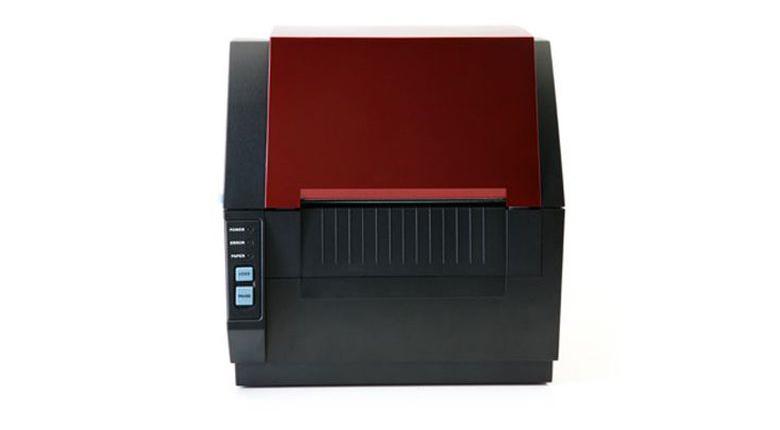

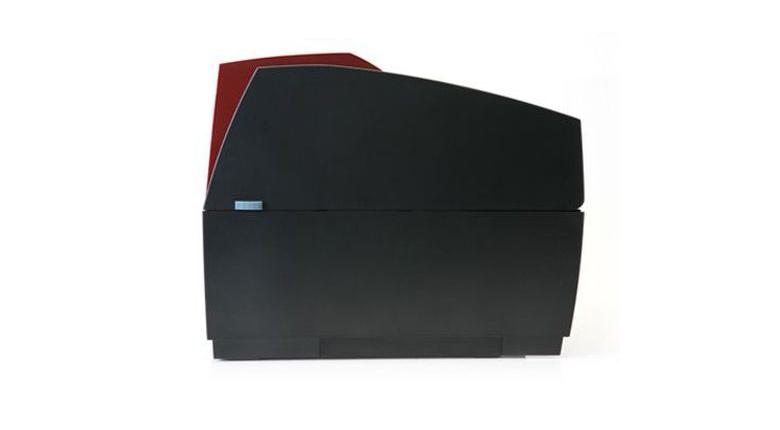

4-inch Thermal Transfer and Direct Thermal Label Printer
Model Name
LK-B20/B230
Series
Label Printer
Data
LK-B20 Leaflet
Manufacturer information
provider logo
AROOT

SEWOO, Mini printing machine manufacturer, POS, Receipt printing machine, Mobile printing machine, Printer mechanism and more

Problem with product info?
Update request
Manufacturer
AROOT
Brand
-
SKU
30629
Product Name
4-inch Thermal Transfer and Direct Thermal Label Printer
Model Name
LK-B20/B230
Size
-
Weight
-
Product Details

PRINTING SPECIFICATION

• METHOD : Thermal Transfer and Direct Thermal
• SPEED :
∙LK-B20 : 152 mm/sec
∙LK-B230 : 102 mm/sec
• WIDTH : 104 mm (4.1)
• PRINT LENGTH :
∙LK-B20 : 1,250 mm (49.2)
∙LK-B230 : 650 mm (25.5)
• RESOLUTION :
∙LK-B20 : 203 DPI (8 dots/mm)
∙LK-B230 : 300 DPI (12 dots/mm)


PAPER SPECIFICATION

[ PAPER ]
• TYPE : Label, Tag, Continuous, Fanfold
• WIDTH : 18 ~118 mm (0.7~ 4.64)
• THICKNESS : 0.06 ~ 0.20 mm
• ROLL DIAMETER : Ø38.1(1.5)~ Ø200mm(7.8)
• ROLL CORE INNER DIAMETER : Ø25.4(1)~Ø127mm(5.0)

[ RIBBON ]
• WIDTH : 33~110 mm (1.3 ~ 4.3)
• LENGTH : 360M, Ø 67 mm (2.63)

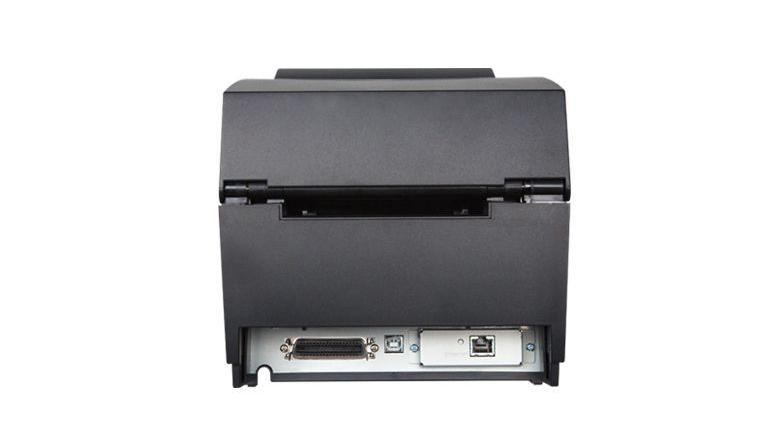

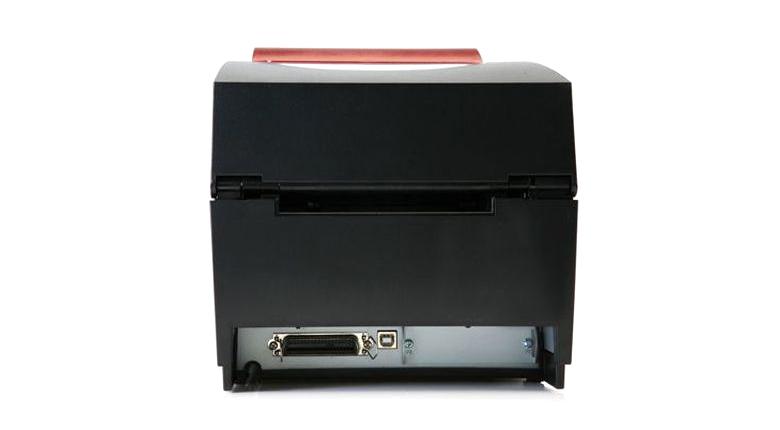

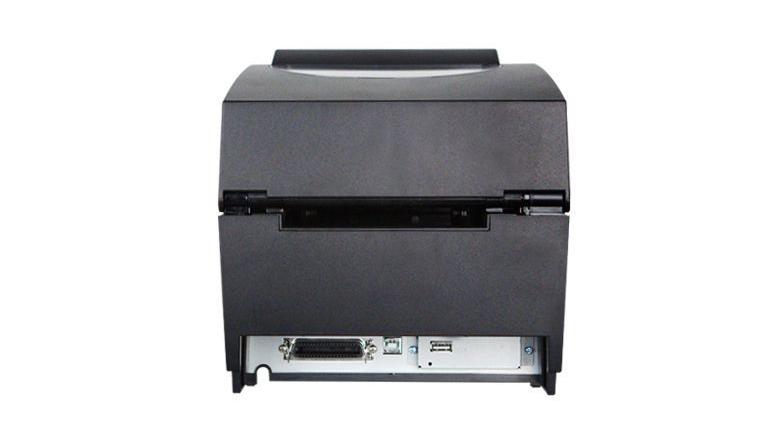

INTERFACE

• STANDARD : Parallel(IEEE-1284), USB

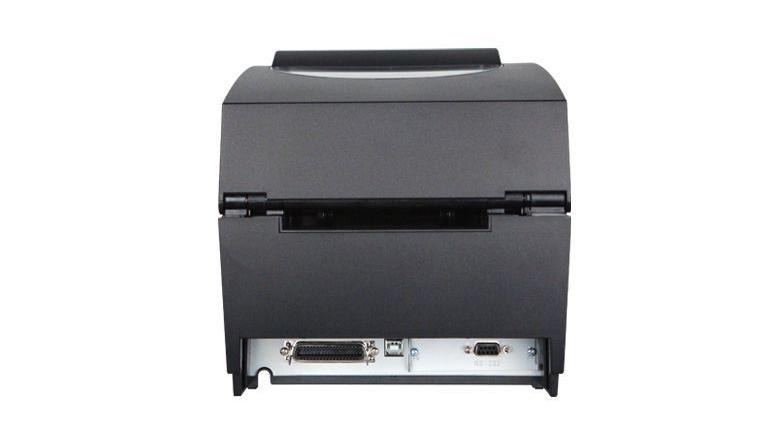

• OPTION : Serial(RS-232C), Ethernet


Key Feature

Thermal transfer and Direct thermal printing

- Stable and reliable printing

- High capacity of roll (200mmOD) with external media holder

- Less ribbon replacement with 360M length (Wax, Wax / Resin, Resin)

- Paper width adjustable from 18mm to 118mm

- Selectable optional auto cutter or peeler

- High speed 152mm/sec(LK-B20)



Function

J. Stephen Lab 4-inch Thermal Transfer and Direct Thermal Label Printer LK-B20/B230


Application

J. Stephen Lab 4-inch Thermal Transfer and Direct Thermal Label Printer LK-B20/B230 1



SEWOO, Mini printing machine manufacturer, POS, Receipt printing machine, Mobile printing machine, Printer mechanism and more
J. Stephen Lab. is the first company to develop a Dot Impact printer Mechanism for receipt printing within this country.  With continuous R&D investment in the mini-printer industry and superior quality, We have been demonstrated in 80 countries throughout the world since its establishment in April, 2002. Our product lines include POS printers, Mechanism, Mobile printers, Label printers and RFID printers reflecting rapidly changing market demands in the Retail, Hospitality, and AIDC industries. We also make diverse interfaces and accessories to provide easier use of our printers and ensure customer satisfaction. We will lead the paradigm of the mini-printer industry with challenge and passion as a global total printing solutions leader.  We promise to be a sincere partner who ensures your success by our reliable total printing solution. We always try to grow together with our customers by providing quality products and a differentiated global service system. As a total printing solution leader with trusted innovation, our talented team will always endeavor to meet customer satisfaction through constant R&D investment, state-of-the-art technologies and world-class customer service.
