316 Stainless Steel Band (coated & uncoated) (Band)
Model Name
-
Series
Band & Buckle
Data
-
Manufacturer information
provider logo
BAND-IT

The Experts in Band Clamping and Fasteing Solution

Problem with product info?
Update request
Manufacturer
BAND-IT
Brand
-
SKU
130403
Product Name
316 Stainless Steel Band (coated & uncoated) (Band)
Model Name
-
Size
-
Weight
-
Product Details

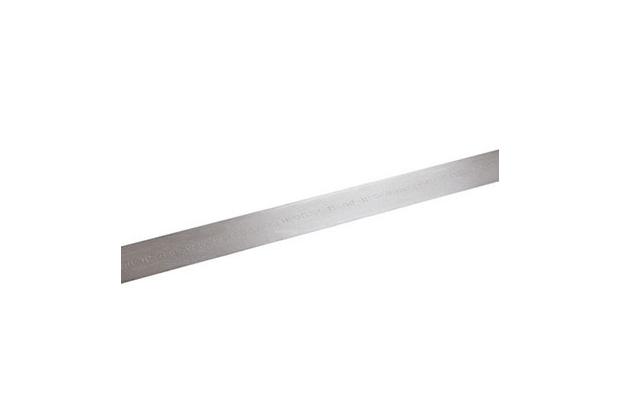

316 STAINLESS STEEL BAND (COATED & UNCOATED)

This alloy provides superior corrosion resistance in fresh water and typical atmospheres and is non-magnetic. Ideal for food process, chemical / agricultural hose assemblies, marine splash zones and some acidic environments.


- Available with halogen-free coating (PPA 571) for additional corrosion resistance and smoother edges

- Utilized in general use banding applications for marine splash zones

- Comes with Easy Scale patented imprint on the band to quickly determine band length without waste




PRODUCT SPECIFICATIONS

PART NO.MATERIALWIDTH (MM)THICKNESS (MM)AVERAGE BREAKING STRENGTH (LBS)PACKAGE QUANTITYWEIGHT (KG)
316 Stainless Steel Band Coated
AE4329316 SS6.41.22**33525m/Roll0.9
AE4339316 SS9.61.22**50525m/Roll1.2
AE4349316 SS12.71.22**67025m/Roll1.6
AE4359316 SS15.81.22**84025m/Roll2
AE4369316 SS19.11.22**100025m/Roll2.4
**Material thickness includes PPA 571 coating - Base material thickness is 0.015"
316 Stainless Steel Band Uncoated
C40299316 SS6.40.5140030.5m/Roll0.9
C40399316 SS9.60.6475030.5m/Roll1.6
C40499316 SS12.70.76120030.5m/Roll2.2
C404B9316 SS12.70.761200Blue Tote 30.5m/Roll2.6
C40599316 SS15.80.76150030.5m/Roll2.8
C405G9316 SS15.80.761500Green Tote 30.5m/Roll3.1
C40699316 SS19.10.76180030.5m/Roll3.4
C406R9316 SS19.10.761800Red Tote 30.5m/Roll3.7

* The J02069 Pok-It II Tool with Cutter can be used with 3/8” maximum width product.

BAND-IT
The Experts in Band Clamping and Fasteing Solution
THE EXPERTS IN HIGH-QUALITY ENGINEERED BAND CLAMPING AND FASTENING SOLUTIONS Founded in 1937 to produce fastening solutions for the Gates rubber company, BAND-IT has a long tradition of designing and developing new and innovative fastening solutions that withstand the harshest environments and keep people safe. BAND-IT clamps have been designed and manufactured to clamp, manage cable, identify and insulate for dozens of applications worldwide. BAND-IT products deliver the robust performance and durability essential to harsh duty, mission-critical applications in traditional and emerging industries. BAND-IT combines application-specific engineering with a storied tradition of manufacturing excellence to provide durable, tailored solutions to all customers worldwide. BAND-IT products can be found in many applications ranging from rockets, rovers, and satellites in outer space all the way to the bottom of the ocean, and we’re just getting started! Today, BAND-IT is acknowledged as the world's leader in quality engineered band clamping and fastening solutions. BAND-IT, a unit of IDEX Corporation, has a global network of sales and manufacturing facilities serving users worldwide. Headquartered in Denver, CO, BAND-IT also has sales offices and operations facilities in Europe, the Middle East, Latin America, India, Japan, China and the Pacific Rim.
