Ultra-Lok® System
Model Name
-
Series
Banding Systems
Data
-
Manufacturer information
provider logo
BAND-IT

The Experts in Band Clamping and Fasteing Solution

Problem with product info?
Update request
Manufacturer
BAND-IT
Brand
-
SKU
130426
Product Name
Ultra-Lok® System
Model Name
-
Size
-
Weight
-
Product Details

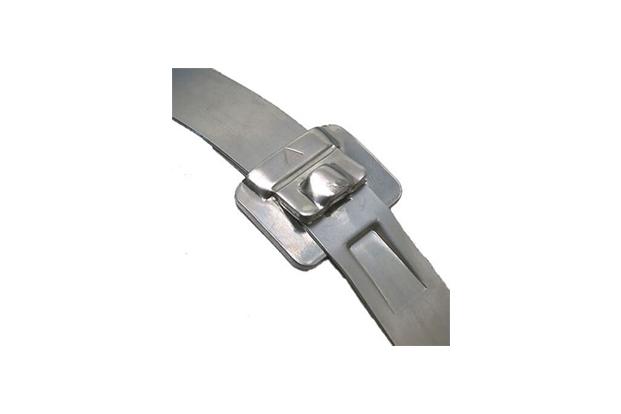

ULTRA-LOK® SYSTEM

Designed for quick installation, highest clamping force and gap-free inside diameter. The best choice for demanding applications!


- Apply 3-5 times faster than band and buckle hand tools

- Unique lock formed under full tension maximizing tightness

- 201 1/4 hard SS band provides greater material strength allowing tighter clamps and can be double wrapped for additional strength

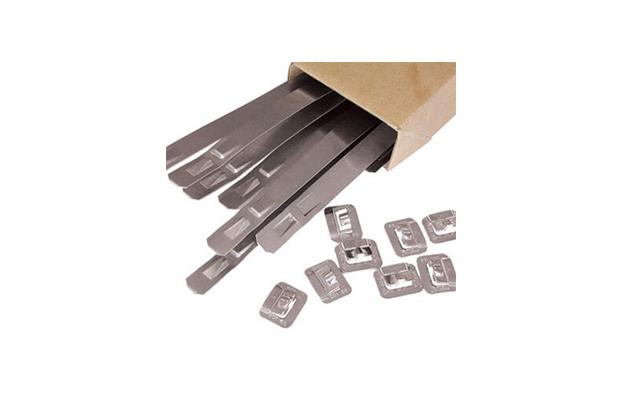

- 3/4" band available in plastic totes, buckles sold separately

- Buckle hood protects lock from snags

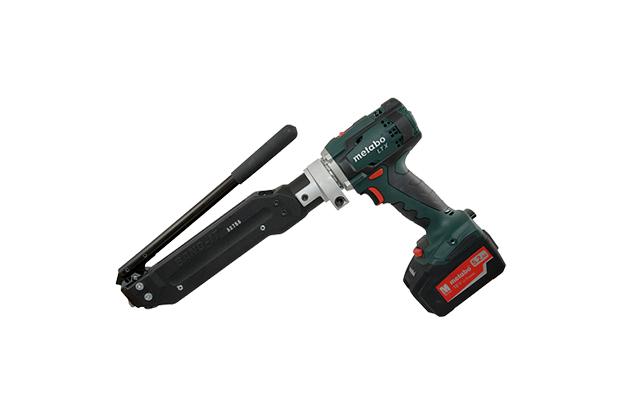

- Installs quickly with the UL4000-D cordless tool.




PRODUCT SPECIFICATIONS

PART NO.MATERIALWIDTH (MM)LENGTH (MM)THICKNESS (MM)MAX. DIA. SINGLE WRAP (MM)MAX. DIA. DOUBLE WRAP (MM)PACKAGE QUANTITYWEIGHT (KG)
Ultra-Lok® Band
UL1018**201 SS12.74570.7676not suggested50/Box1.9
UL1024**201 SS12.76100.761276450/Box2.4
UL1032**201 SS12.78130.761788950/Box3.3
UL1046**201 SS12.711680.7628014025/Box2.7
UL1070**201 SS12.717780.7645722925/Box3.9
UL1096**201 SS12.724380.7663531825/Box5.1
UL1116**201 SS12.729460.7678739425/Box6.0
UL2024201 SS19.16100.76127not suggested25/Tote1.9
UL2032201 SS19.18130.761788919/Tote2.0
UL2036201 SS19.19140.7625210233/Tote3.7
UL2044201 SS19.111180.7626714027/Tote3.7
UL2048201 SS19.112190.7630515325/Tote3.7
UL2052201 SS19.113210.7633016523/Tote3.7
UL2060201 SS19.115240.7638119120/Tote3.7
UL2068201 SS19.117270.7644521617/Tote3.7
UL2076201 SS19.119300.7650825415/Tote3.7
UL2084201 SS19.121340.7655928014/Tote3.7
UL2092201 SS19.123370.7662230513/Tote3.7
UL2120201 SS19.130480.7682640710/Tote3.7
UL2150201 SS19.138100.7610295088/Tote3.7
UL2175201 SS19.144450.7612326106/Tote3.7
Ultra-Lok® Buckles
UB2549201 SS12.7     3.7
UB2569201 SS19.1     3 5/7

** 1/2" Bands will require M09387 for UL4000 and UL9010 Tool.

3/4" width band lengths 36" or longer in 100' Totes; 34" or less in 50' Totes.




Alloy 625 Ultra-Lok® Band

PART NUMBERMATERIALWIDTH (MM)LENGTH (MM)MAXIMUM CLAMP DIAMETER
SINGLE WRAP (MM)DOUBLE WRAP (MM)
Call for Part Number &
Minimum order Quantity
Alloy 62519.1508102not suggested
Alloy 62519.1610127not suggested
Alloy 62519.1711152not suggested
Alloy 62519.181317889
Alloy 62519.1914252102
Alloy 62519.11016254127
Alloy 62519.11118267140
Alloy 62519.11219305153
Alloy 62519.11321330165
Alloy 62519.11524381191
Alloy 62519.11727445216
Alloy 62519.11930508254
Alloy 62519.12134559280
Alloy 62519.12337622305
Alloy 62519.13048826407
Alloy 62519.138101029508
Alloy 62519.144451232610



BAND-IT
The Experts in Band Clamping and Fasteing Solution
THE EXPERTS IN HIGH-QUALITY ENGINEERED BAND CLAMPING AND FASTENING SOLUTIONS Founded in 1937 to produce fastening solutions for the Gates rubber company, BAND-IT has a long tradition of designing and developing new and innovative fastening solutions that withstand the harshest environments and keep people safe. BAND-IT clamps have been designed and manufactured to clamp, manage cable, identify and insulate for dozens of applications worldwide. BAND-IT products deliver the robust performance and durability essential to harsh duty, mission-critical applications in traditional and emerging industries. BAND-IT combines application-specific engineering with a storied tradition of manufacturing excellence to provide durable, tailored solutions to all customers worldwide. BAND-IT products can be found in many applications ranging from rockets, rovers, and satellites in outer space all the way to the bottom of the ocean, and we’re just getting started! Today, BAND-IT is acknowledged as the world's leader in quality engineered band clamping and fastening solutions. BAND-IT, a unit of IDEX Corporation, has a global network of sales and manufacturing facilities serving users worldwide. Headquartered in Denver, CO, BAND-IT also has sales offices and operations facilities in Europe, the Middle East, Latin America, India, Japan, China and the Pacific Rim.
