CENTER PUNCH CLAMPS
Designed to meet your specific application requirement. Used in less demanding applications where minimizing leaks and longevity are not critical. Lock with impact from a hammer using a conical punch designed into the tool.

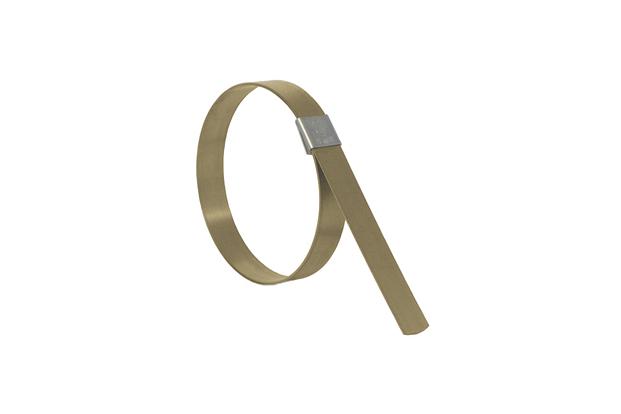

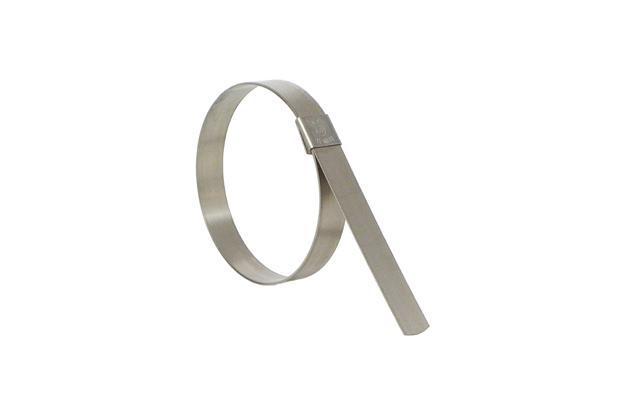

- Double wrapped steel bands using 201 Stainless Steel or galvanized carbon steel
- Manufactured with 201 Stainless Steel buckles to provide added locking strength
- Not recommended for use with fittings that may crack as a result of impact or poly fittings
PRODUCT SPECIFICATIONS
201 SS* PART NO. | GCS* PART NO. | WIDTH (MM) | THICKNESS (MM) | INSIDE DIAMETER (MM) | WEIGHT (KG) | PACKAGE QUANTITY |
---|---|---|---|---|---|---|
Center Punch Clamp 0.025" Thickness | ||||||
CP3S99 | CP0399 | 9.6 | 0.64 | 20 | 1.6 | 100/Box |
CP311S | CP3119 | 9.6 | 0.64 | 35 | 2.1 | 100/Box |
CP4S99 | CP0499 | 15.8 | 0.64 | 25 | 3.8 | 100/Box |
CP5S99 | CP0599 | 15.8 | 0.64 | 32 | 4.0 | 100/Box |
CP6S99 | CP0699 | 15.8 | 0.64 | 38 | 4.4 | 100/Box |
CP7S99 | CP0799 | 15.8 | 0.64 | 44 | 4.8 | 100/Box |
CP8S99 | CP0899 | 15.8 | 0.64 | 51 | 5.2 | 100/Box |
CP9S99 | CP0999 | 15.8 | 0.64 | 57 | 5.7 | 100/Box |
CP10S9 | CP1099 | 15.8 | 0.64 | 64 | 3.1 | 50/Box |
CP11S9 | CP1199 | 15.8 | 0.64 | 70 | 3.3 | 50/Box |
CP12S9 | CP1299 | 15.8 | 0.64 | 76 | 3.5 | 50/Box |
CP14S9 | CP1499 | 15.8 | 0.64 | 89 | 4.0 | 50/Box |
CP16S9 | CP1699 | 15.8 | 0.64 | 102 | 2.2 | 25/Box |
CP18S9 | CP1899 | 15.8 | 0.64 | 114 | 2.5 | 25/Box |
CP20S9 | CP2099 | 15.8 | 0.64 | 127 | 2.7 | 25/Box |
CP24S9 | CP2499 | 15.8 | 0.64 | 152 | 3.1 | 25/Box |
CP26S9 | CP2699 | 15.8 | 0.64 | 165 | 3.3 | 25/Box |
CP28S9 | CP2899 | 15.8 | 0.64 | 178 | 3.4 | 25/Box |
CP32S9 | CP3299 | 15.8 | 0.64 | 203 | 3.7 | 25/Box |
* BAND-IT reserves the right to substitute material with equal or better corrosion resistance and/or mechanical specifications
