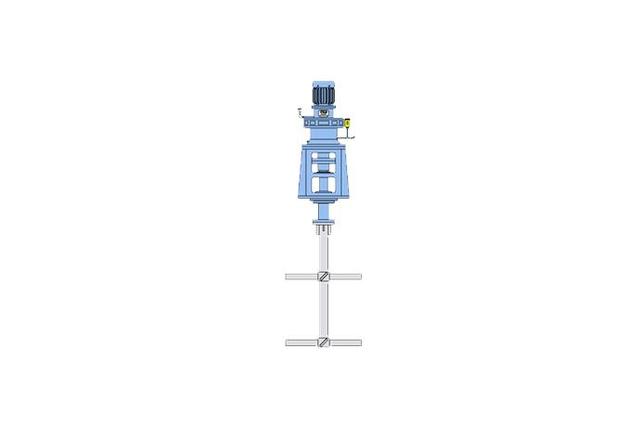

Product Name

싸이크로이드 감속기 - Flange Type Reducer

Model Name

Size

Weight

Product Details

창신기계제작소 싸이크로이드 감속기 - Flange Type Reducer

MODEL No.	DIMENSIONS[mm]
MODEL No.	Kw-P	A	B	C	D	E	F	G	H	K	L	M	O	P	Q	R	S	T	U	d	t	u	G1	D1
FH1-830	0.4-4	190	250	115	160	220	67	45	211	15	305	12	160	130	110	4	50	9	10	30	8	33	40	20
FH1-835	0.75-4	190	250	115	160	220	72	50	211	15	310	12	200	165	130	4	60	10	12	35	10	38	40	20
FH1-838	1.5-4	210	286	130	180	250	77	55	238	16	339	15	200	165	130	4	70	10	12	38	10	41	45	25
FH1-845	1.5-4	230	314	145	190	278	92	65	257	18	366	15	200	165	130	4	70	10	12	45	14	48.2	45	28
FH1-850	2.2-4	230	314	145	190	278	102	75	257	18	376	15	250	215	180	5	80	13	15	50	14	53.5	45	28
FH1-855	3.7-4	250	346	165	200	308	112	80	301	22	401	17	250	215	180	5	82	13	15	55	16	59	50	30
FH1-860	5.5-4	270	374	185	220	336	122	90	335	24	431	17	300	265	230	5	102	16	15	60	18	64	50	35
FH1-865	5.5-4	310	430	210	250	390	133	95	385	28	489	19	300	265	230	5	105	16	15	65	18	69	65	40
FH1-870	7.5-4	310	130	210	250	390	138	100	385	28	494	19	300	265	230	5	15	16	15	70	20	74.5	65	40
FH1-880	11-4	370	516	250	310	466	157	120	460	30	556	24	350	300	250	6	135	16	19	80	22	85	70	45
FH1-885	15-4	370	516	250	310	466	167	125	460	30	561	24	350	300	250	6	135	16	19	85	22	90	70	45
FH1-895	11-6	410	552	270	340	502	188	145	498	40	634	24	350	300	250	6	136	16	19	95	25	100	80	50
FH1-8100	15-6	410	552	270	340	502	193	150	498	40	639	24	400	350	250	6	136	20	19	100	28	106	80	50
FH1-8110	18.5-6	450	595	295	370	538	207	160	538	40	707	26	400	350	300	6	136	20	19	110	28	116	100	60
FH1-8120	22-6	470	642	320	390	588	227	180	588	45	774	26	450	400	350	6	170	20	19	120	32	127	110	70
FH1-8130	30-6	490	730	360	400	660	247	195	655	55	813	35	450	400	350	6	170	20	19	130	32	137	115	75
FH1-8140	37-6	510	780	380	420	710	253	200	702	60	850	35	450	400	350	6	149	20	19	140	36	148	120	80
FH1-8150	37-8	550	900	450	450	860	278	220	832	65	937	35	550	500	450	6	149	22	19	150	36	158	125	85
FH1-8170	45-8	590	1068	550	490	1006	318	260	1020	70	1048	35	550	500	450	6	149	22	19	170	40	179	135	90

창신기계제작소 싸이크로이드 감속기 - Flange Type Reducer 1

MODEL No.	DIMENSIONS[mm]
MODEL No.	Kw-P	A	B	C	D	E	F	G	H	L	M	O	P	Q	R	S	T	U	d	t	u	G1	D1
FV1-830	0.4-4	220	190	166	45	55	161	3	14	317	12	160	130	110	4	50	9	10	30	8	33	40	20
FV1-835	0.75-4	22	190	166	50	60	161	3	14	322	12	200	165	130	4	60	10	12	35	10	38	40	20
FV1-838	1.5-4	0250	220	200	55	65	179	3	14	351	12	200	165	130	4	70	10	12	38	10	41	45	25
FV1-845	1.5-4	270	236	210	65	75	196	3	18	378	12	200	165	130	4	70	10	12	45	14	48.2	45	28
FV1-850	2.2-4	300	264	230	75	85	196	3	18	388	15	250	215	180	5	80	13	15	50	14	53.5	45	28
FV1-855	3.7-4	340	304	274	80	91	209	4	20	413	15	250	215	180	5	82	13	15	55	16	59	50	30
FV1-860	5.5-4	360	304	294	90	101	231	4	22	443	17	300	265	230	5	102	16	15	60	18	64	50	35
FV1-865	5.5-4	380	324	310	95	106	262	4	24	502	17	300	265	230	5	105	16	15	65	18	69	65	40
FV1-870	7.5-4	380	342	310	100	111	262	4	24	507	17	300	265	230	5	15	16	15	70	20	74.5	65	40
FV1-880	11-4	460	342	370	120	131	299	4	26	570	19	350	300	250	6	135	16	19	80	22	85	70	45
FV1-885	15-4	460	414	370	125	136	299	4	26	575	19	350	300	250	6	135	16	19	85	22	90	70	45
FV1-895	11-6	550	500	450	145	156	342	4	30	648	24	350	300	250	6	136	16	19	95	25	100	80	50
FV1-8100	15-6	550	500	450	150	161	342	4	30	653	24	400	350	250	6	136	20	19	100	28	106	80	50
FV1-8110	18.5-6	580	530	480	160	171	376	4	32	721	24	400	350	300	6	136	20	19	110	28	116	100	60
FV1-8120	22-6	636	578	510	180	191	406	4	36	788	26	450	400	350	6	170	20	19	120	32	127	110	70
FV1-8130	30-6	690	632	570	195	207	420	5	38	827	26	450	400	350	6	170	20	19	130	32	137	115	75
FV1-8140	37-6	810	752	680	200	212	446	5	42	865	26	450	400	350	6	149	20	19	140	36	148	120	80
FV1-8150	37-8	900	842	770	220	232	513	5	50	954	26	550	500	450	6	149	22	19	150	36	158	125	85
FV1-8170	45-8	990	932	860	260	272	570	5	55	1065	26	550	500	450	6	149	22	19	170	40	179	135	90

창신기계제작소 싸이크로이드 감속기 - Flange Type Reducer 2

MODEL No.	DIMENSIONS[mm]															KEY	WEIGHT [kg]
MODEL No.	A	B	C	D	E	F	G	L	M	d	t	u	d1	t1	u1	KEY	WEIGHT [kg]
F1-830	250	220	190	157	10	3	45	315	10	30	8	33	20	6	22.5	8x7	29
F1-835	250	220	190	162	10	3	50	320	10	35	10	38	20	6	22.5	10x8	30
F1-838	270	240	212	181	12	3	55	351	12	38	10	41	25	8	28	10x8	40
F1-845	300	270	240	202	12	3	65	378	12	45	14	48.5	28	8	31	14x9	50
F1-850	300	270	240	212	12	3	75	388	12	50	14	53.5	28	8	31	14x9	51
F1-855	330	300	270	226	13	4	80	414	15	55	16	59	30	8	33	16x10	71
F1-860	360	330	300	252	15	4	90	446	15	60	18	64	35	10	38	18x11	95
F1-865	420	350	350	271	17	4	95	506	17	65	18	69	40	12	43	18x11	142
F1-870	420	350	350	276	17	4	100	511	17	70	20	74.5	40	12	43	20x12	143
F1-880	500	460	420	322	18	4	120	574	19	80	22	85	45	14	48.5	22x14	219
F1-885	500	460	420	327	18	4	125	579	19	85	22	90	45	14	48.5	22x14	220
F1-895	540	500	450	382	20	4	145	654	19	95	25	100	50	14	53.5	25x14	300
F1-8100	540	500	450	387	20	4	150	659	19	100	28	106	50	14	53.5	28x16	302
F1-8110	580	540	490	416	24	4	160	731	22	110	28	116	60	18	64	28x16	381
F1-8120	620	580	530	454	24	4	180	798	24	120	32	127	70	20	74.5	32x18	516
F1-8130	670	620	570	478	26	5	195	839	24	130	32	137	75	20	79.5	32x18	654
F1-8140	750	700	640	500	28	5	200	878	24	140	36	148	80	22	85	36x20	850
F1-8150	870	820	760	549	30	5	220	967	26	150	36	158	85	22	90	36x20	1276
F1-8170	1050	1000	930	614	34	5	260	1082	26	170	40	179	90	25	95	40x22	1780

창신기계제작소 싸이크로이드 감속기 - Flange Type Reducer 3

MODEL No.	DIMENSIONS[mm]
MODEL No.	A	B	C	D	E	F	G	H	I	J	K	L	M-SCH.
CSM-845	320	274	178	45	77	135	200	410	210	8	30211	14	65-20
CSM-850	360	314	208	50	90	165	216	431	215	9	30212	14	80-20
CSM-855	400	338	224	55	102	180	260	480	220	10	30214	14	90-40
CSM-860	420	356	234	60	115	200	280	510	230	10	30215	14	100-40
CSM-870	440	376	254	70	115	200	280	515	235	12	30217	17	100-40
CSM-880	540	468	316	85	140	250	350	645	295	14	30220	20	125-40
CSM-8100	650	568	395	100	166	320	427	822	395	16	30224	24	150-40
CSM-8110	680	600	420	110	217	340	450	875	425	17	30226	24	200-40
CSM-8120	730	636	446	120	268	400	507	942	435	18	30228	24	250-40
CSM-8130	780	688	490	130	268	400	553	995	442	20	30230	26	250-60
CSM-8140	900	808	576	140	319	450	564	1031	468	20	30232	26	300-40
CSM-8150	1020	940	660	150	319	450	595	1097	502	22	30234	26	300-60
CSM-8170	1100	1020	740	170	319	450	675	1220	545	27	30238	26	300-60

ㆍDRIVE UNIT는 중심구동형 침전조등에 사용합니다.

ㆍ쉐어핀 피동부에 과도한 힘이 걸리면 자동으로 절단되어 감속기를 보호하기 위한 장치입니다.

ㆍ당사에서는 스크레퍼 하부고정용 메탈박스도 양산하고 있습니다.
