Isolated RS-485/RS-422Transceiver with Integrated Isolating Power
Model Name
CA-IS2092W
Data
Data sheet-CHIPANALOG-Low EMI Isolated RS-485/RS-422Transceiver with integrated isolating power
Manufacturer information
CHIPANALOG
High-tech company focusing on R&D, design and sales of high-end analog chips
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
CHIPANALOG
Brand
-
SKU
140474
Product Name
Isolated RS-485/RS-422Transceiver with Integrated Isolating Power
Model Name
CA-IS2092W, CA-IS2092VW, CA-IS2092A
Size
-
Weight
-
Product Details
General Description

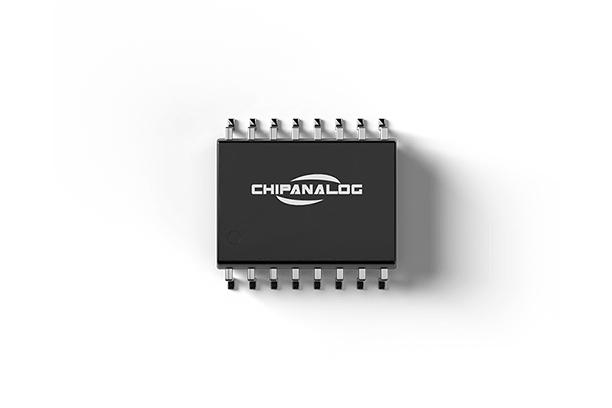

The CA-IS2092W is an isolated RS-485/RS-422 transceiver with an integrated isolated power supply, featuring high electromagnetic immunity and low emission. The device operates in half-duplex mode.
The high isolation of the CA-IS2092W device helps prevent noise and surges on the data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuits. High CMTI capability ensures the correct transmission of digital signals. The CA-IS2092W device is housed in a 16-pin wide-body SOIC package and supports insulation to withstand voltage up to 2.5 kVrms.
| Part Number | Series Name | Product Status | Integrate isolated power supply
|
Isolation Voltage (Vrms) |
CMTI (kV/μS) |
Surge Rating (kVpk) |
Bus ESD Rating (V) |
Data rate (Mbps) |
Operating Voltage Range (V) |
Operation Mode
|
Temperature Range (℃) |
Package
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CA-IS2092W | Low EMI Isolated RS-485/RS-422Transceiver with integrated isolating power |  |
Y | 2500 | 150 | 10 | 8000 | 0.5 | 3-5.5 | Half Duplex | -40~125 | SOIC16-WB(W) |
| CA-IS2092VW | Low EMI Isolated RS-485/RS-422Transceiver with integrated isolating power | |
Y | 2500 | 150 | 10 | 8000 | 0.5 | 3-5.5 | Half Duplex | -40~125 | SOIC16-WB(W) |
| CA-IS2092A | Low EMI Isolated RS-485/RS-422Transceiver with integrated isolating power |  |
Y | 2500 | 150 | 8 | 4000 | 0.5 | 3-5.5 | Half Duplex | -40~125 | LGA16(A) |
