airTOXIC BTX PID : Analyse des BTEX et du 1,3-butadiène (VOCs)
Model Name
A73022
Series
Auto GC866 Analyzers
Data
Catalog-Chromatotec-airTOXIC BTX PID : Analyse des BTEX et du 1,3-butadiène (VOCs)
Manufacturer information
provider logo
CHROMATOTEC

Manufacturer of Auto GC866 Analyzers, Mass Spectrometers, Peripherals and more

Problem with product info?
Update request
Manufacturer
CHROMATOTEC
Brand
-
SKU
138559
Product Name
airTOXIC BTX PID : Analyse des BTEX et du 1,3-butadiène (VOCs)
Model Name
A73022, A73022 Exp
Size
-
Weight
-
Product Details

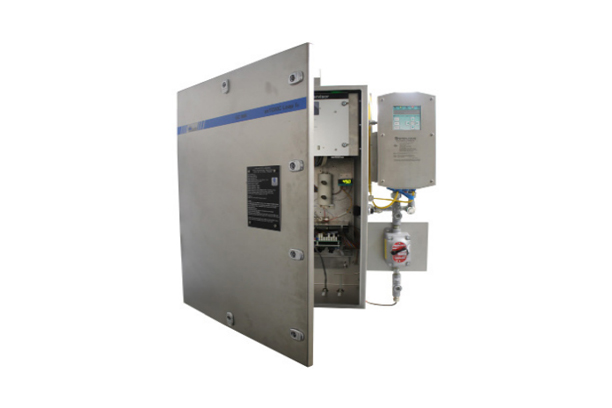

A GC/PID for automatic monitoring of BTEX in air, water and soils

This instrument uses a port valve with a single absorbent trap, and a 30 meter metallic 0.28 mm ID column.
Minimum detection level as low as 10 ppt for application Benzene or 1,3-Butadiene in ambient air.
Miniaturization, sensitivity, mobility and flexibility are its main features.
Everything from the sample port up to the data storage is integrated in a 19"- rack 5U.

MCERTS certified analyzer for benzene measurement following EN 14662-3 norms

Programmed gradient temperature up to 202°c for the column oven and pressure/flow control of the carrier gas.
Linearity on area with R2 > 0.995
European range : 0.45 to 45 µg/m3 = 0.1 to 14.5 ppb.

Before delivery the analyzer is tested for one week by our quality control department.
Photo ionization detector (PID), 10,6 eV lamp.
Self-cleaning of the lamp ensures high stability.
Bi-directional RS-232 C to transfer data and results to the internal computer.

Vistachrom software enables the user to view and store data on a industrial computer. It provides comfortable user-friendly utilities to recalculate, calibrate and export data and to configure the measurement.
The software allows the calculation of retention time, area, mass or concentration profiles, in any measuring unit.
LCD DISPLAY
Results output : different communication protocols available
