H2S MEDOR : Hydrogene Sulfide (Sulfur Compounds)
Model Name
M51022
Series
Auto GC866 Analyzers
Data
Catalog-Chromatotec-H2S MEDOR - Hydrogene Sulfide
Manufacturer information
provider logo
CHROMATOTEC

Manufacturer of Auto GC866 Analyzers, Mass Spectrometers, Peripherals and more

Problem with product info?
Update request
Manufacturer
CHROMATOTEC
Brand
-
SKU
138571
Product Name
H2S MEDOR : Hydrogene Sulfide (Sulfur Compounds)
Model Name
M51022, M51022-ATEX
Size
-
Weight
-
Product Details

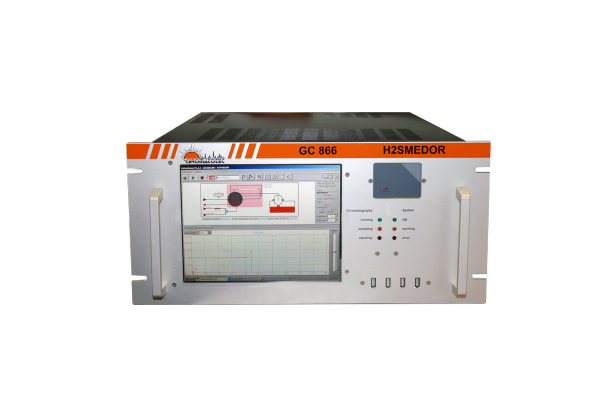

Analyser for continuous on-line monitoring of Hydrogen Sulphide

Description :

H2S Medor is an online Gas Chromatograph dedicated to the analysis of H2S present in different matrices.
Two versions of the instrument exist :

  • H2S Medor ppm (measuring at ppm levels)
  • H2S Medor ppb (measuring at ppb levels)

Principle :

  • Internal pressure & temperature monitoring
  • Sample loop injection is made by automatic valve
  • H2S Medor uses a sulphur specific electrochemical cell for the detection of H2S

Features :

  • Online, continuous sampling
  • No interference from other compounds
  • Low maintenance instrument – detector life may be up to 10 years
  • Automatic Validation of results by Internal Permeation Tube
  • Modifiable threshold alarms – High / Low alarm for deodorising processes

VISTACHROM ® software
Chromatotec developed software system enables :

  • Remote monitoring & injection control
  • Full traceability with on board archiving of results and QC Set up and control of threshold alarms
  • Export of data MODBUS / MGS1 / 4-20mA / 0-10V
More products
CHROMATOTEC
Manufacturer of Auto GC866 Analyzers, Mass Spectrometers, Peripherals and more
For more than 40 years, Chromatotec Group has provided a full range of automatic gas chromatographs (autogas) for online monitoring. These innovative analyzers are 100% made in France and allow tracking of ppt/ppb/ppm and % concentration levels. Our product line Worldwide known for its leading-edge technology, our group offers gas analysis systems with in-built computers and its own developed software, Vistachrom, to pilot these process analyzers. We manufacture several analyzer ranges which are mounted in a 19" rack and with 4U height with everything included in the instrument. Our main GC 866 ranges are : * MEDOR range: analysis of sulfur compounds in natural gas (gas company) and ambient air (wastewater plant application) since 1975.* AIRMO range: analysis of VOC / BTEX in ambient air (ppb, ppt, ppm).* CHROMA range: analysis of impurities in pure gas and in industrial air (ppb / %). This range has been developed since the creation of the Chromato-Sud company in 1986.* Odor Monitoring Solutions: Specific detectors. Chromatotec offers global solutions with the integration of automation systems (multiplexer, peripheral equipment, alarms, and communication protocols…)
