Welding lifting rings
Model Name
WE.DSR
Series
Steel lifting rings
Data
Technical Sheet-Codipro-Steel lifting rings-Welding lifting rings-WE.DSR, WE.DSS
Manufacturer information
provider logo
CODIPRO

Lifting rings, Lifting System, Lifting point, Swivel lifting rings and more

Problem with product info?
Update request
Manufacturer
CODIPRO
Brand
-
SKU
139230
Product Name
Welding lifting rings
Model Name
WE.DSR, WE.DSS
Size
-
Weight
-
Product Details
  • WLL from 2.00 t to 10.00 t
  • WLL from 4,400 lbs to 22,000 lbs
  • Swiveling under load
  • 360° rotation - 180° swivel
  • Safety factor 5:1
  • Complies with the Machinery Directive 2006/42/CE
  • Individual traceability number





Description

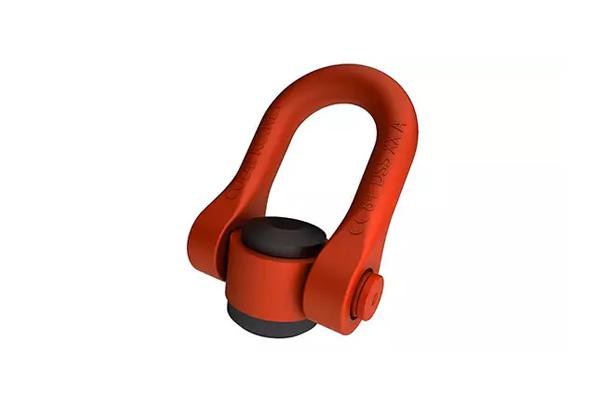

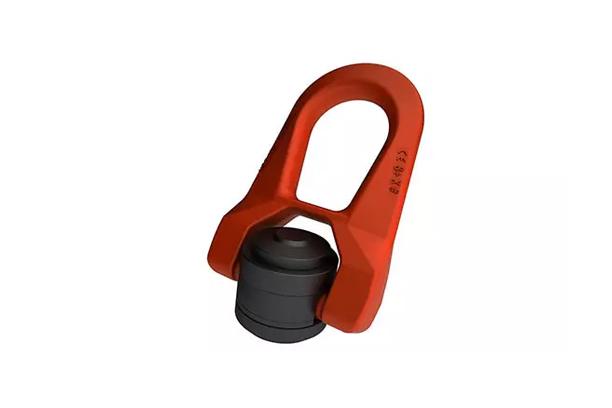

The welding lifting ring, available for the DSR and DSS models, provides welded mounting for lifting and securing loads of up to 10 tons. The lifting ring can swivel 180° but has a rotating range of 360°. Welding applications are strictly reserved for a welder who has the required qualifications based on EN 287-1.

The welding lifting ring carries various markings, including CE, WLL, and tightening torque. It is manufactured in compliance with the REACH regulation.

CODIPRO
Lifting rings, Lifting System, Lifting point, Swivel lifting rings and more
CODIPRO designs and manufactures articulated safety lifting rings. Thanks to a simple, double or triple articulation, CODIPRO articulated lifting rings can be used in all directions and in all positions. Patented and conforming to the strictest safety standards, they are particularly suitable for lifting and rotating loads. From the unit to the large series, from standard to specific, CODIPRO provides lifting equipment distribution professionals with its know-how, its technology, and all the skills of a manufacturer that has become a major player on the international market.
