• Standard metric and UNC threads available:
  M 8 to M 30 - WLL from 0.25 t to 3.5 t
  UNC 1/2” to UNC 1″ - WLL from 1,300 lbs to 5,000 lbs
• Safety factor 5:1
• Swiveling under load
• 360° rotation - 180° swivel
• Complies with the Machinery Directive 2006/42/CE
• Manufactured in compliance with the EN 1677-1 norm
• Individual traceability number

Description

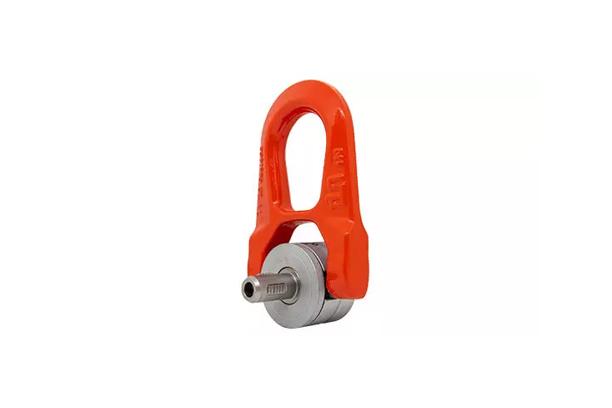

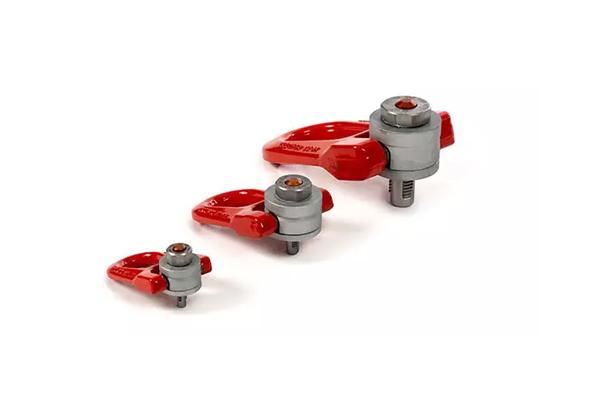

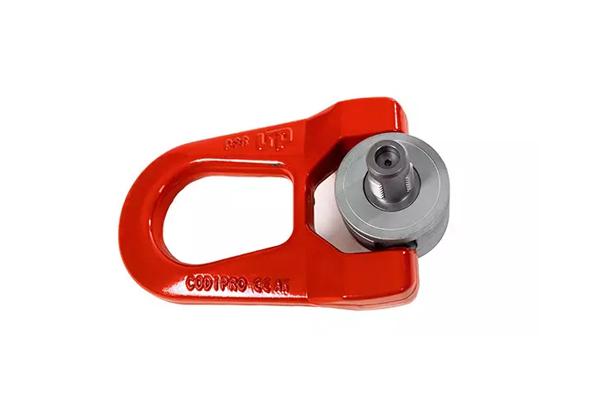

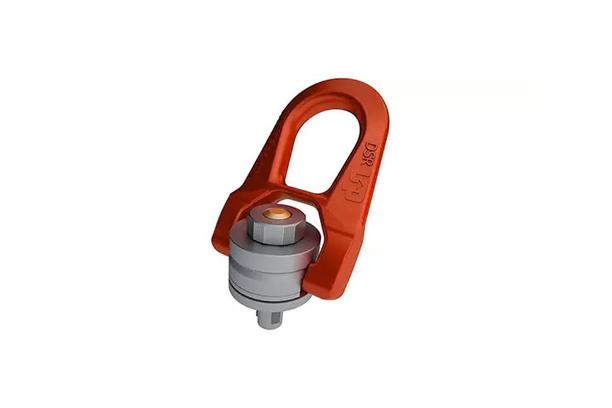

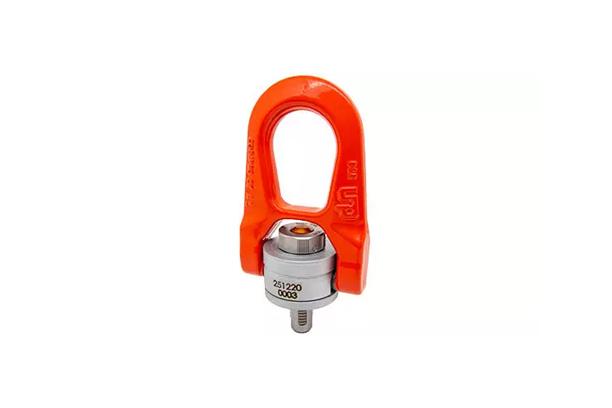

The QLR (Quick Lift Ring) or QL.DSR is a double swivel ring that allows particularly fast mounting. At the push of a button, it can be fixed in the threaded hole with a simple click. Its double swivel ensures perfect alignment with the sling. The QL.DSR saves up to 80 % of the time compared to screwing in a conventional lifting ring. The system works purely mechanically and thus requires no complex maintenance.

The swivel lifting ring QL.DSR is made of GRADUP steel, which stands for better raw material quality. It can be used for any lifting configuration (straight lift, with angle, tilting, rotating) by applying the tightening torque engraved on the ring. The QL.DSR lifting ring is designed for use in a temperature range from -20°c to +200°c and carries various markings, including CE, WLL, and tightening torque.

It is manufactured in compliance with the REACH regulation and is also available in stainless-steel.

No circlips
No ball bearing
