MIL-DTL-5015 Connectors
Model Name
-
Size
-
Weight
-
Product Details

ENVIRONMENTALLY-SEALED WITH REAR-REMOVABLE CRIMP CONTACTS

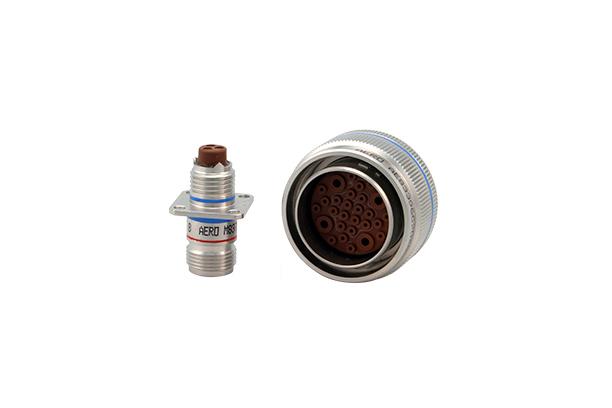

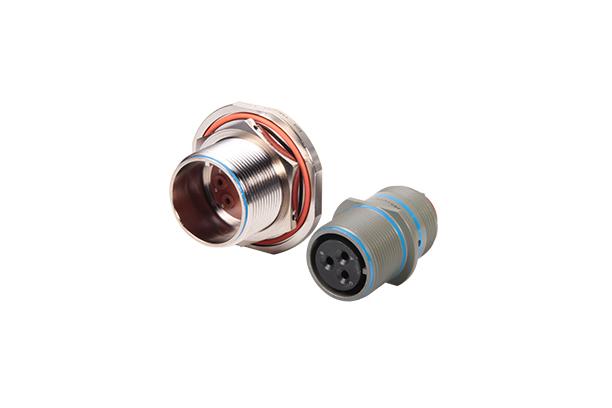

Conesys MIL-DTL-5015 connectors (Series III) feature a flexible design while offering reliable protection against environmental factors. These Conesys MIL-DTL-5015 connectors are an economical option for a number of applications, including commercial, industrial, mass transportation, defense and aerospace.

This Conesys MIL-DTL-5015 connector series offers rear-removable crimp contacts, four receptacle mounting configurations, and a self-locking plug option that eliminates the need for safety wiring. These connectors are intermateable and intermountable with the MIL-DTL-5015 Series I solder type (MS310*) as well as the MIL-DTL- 83723 Series II (USAF) crimp type and MIL-DTL-5015 Series II Front Release (MS340*).

Features and Benefits

  • Self-locking plug eliminates the need for lockwiring
  • A single, expendable plastic tool is used for both insertion and removal of contacts
  • Alternate insert clocking positions aid in mating of adjacent connectors having identical insert arrangement
  • Hard dielectric socket face has lead-in chamfers for positive alignment of pins (even partially bent within pre-established limits) with sockets
  • Raised moisture barriers around each pin, which mate into lead-in chamfers of hard face socket insert, provide individual contact sealing. Interfacial seals are never touched by service tools
  • Sealing over a wide range of wire diameters is assured by a triple wire seal in each cavity at the rear of the connector
  • Rear release crimp contact system features a stamped beryllium-copper retaining clip captivated by molded-in shoulders of each contact cavity in the insulator. A rear-inserted M81969 plastic tool expands the tines beyond the shoulder, releasing the contact
Conesys
Control Panel, Sensors, Avionics, Engines, Controls, Fuel Management, Actuation and more
Every phase of the manufacturing process is tightly controlled, ensuring that our techniques, processes, and tools meet the stringent quality control requirements. Those processes are well documented and in compliance with ISO 9001 and AS9100 Certification. As part of Conesys' Total Quality Management Program, our quality control teams are engaged in statistical process controls (SPC) and digital measuring. This emphasis on continuous process improvement helps to prevent defects and reduce variation and waste.   PRODUCTSConesys /Aero-Electric Connector is a first-rate designer and cost-competitive manufacturer of high-performance environmental and firewall-rated cylindrical connectors machined from aluminum, carbon steel, stainless steel, and aluminum nickel bronze. Conesys/J-Tech specializes in front and rear release 5015 connectors as well as customer-specific applications for customized connectors and fiber optic assemblies. Conesys/EMP Connectors designs and manufactures EMI filters and EMP transient suppression devices. Conesys Europe markets and assembles products for Aero-Electric, J-Tech, and EMP. Conesys/Aero Industrial Products sells and manufactures connectors and cable assemblies intended for the industrial marketplace.   MARKETSOur connectors are widely used in all types of applications spanning markets such as Military/Aerospace, Commercial Aviation, Business Aviation, Aircraft Engines, Marine Applications, Heavy Equipment, Rail Mass Transit, Geophysical, Machine Automation/Motion Control, Medical Equipment, General Industrial and Telecommunications.   EXCELLENCEConesys' manufacturing process is vertically integrated, ISO 9001:2008 and AS 9100, Rev. C certified and most importantly focused on continuous improvement through the prevention of defects and reduction in variation and waste.   QUALITY POLICY"We are committed to Customer Satisfaction by meeting Quality and Delivery requirements while continuously measuring and improving our processes"   MachiningIn-house, using state-of-the-art double spindle, double turret CNC machines allowing for flexibility, and faster cycle times.   MoldingIn-house, using internally built molds allows for tighter controls and improved cycle times.   Metal PlatingIn-house, using state-of-the-art equipment and processes with environmentally friendly results.   AssemblingIn-house, using cellular concepts for better efficiency, cost control, and reduced cycle times
