ENVIRONMENTALLY-SEALED WITH REAR-REMOVABLE CRIMP CONTACTS

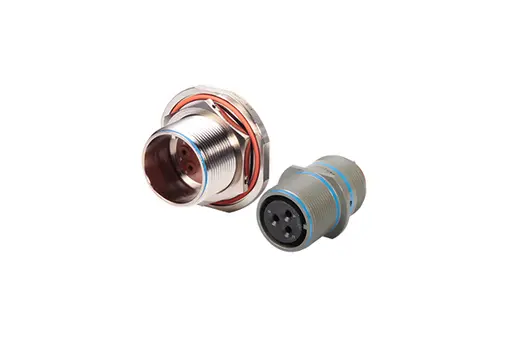

Conesys MIL-DTL-5015 connectors (Series III) feature a flexible design while offering reliable protection against environmental factors. These Conesys MIL-DTL-5015 connectors are an economical option for a number of applications, including commercial, industrial, mass transportation, defense and aerospace.

This Conesys MIL-DTL-5015 connector series offers rear-removable crimp contacts, four receptacle mounting configurations, and a self-locking plug option that eliminates the need for safety wiring. These connectors are intermateable and intermountable with the MIL-DTL-5015 Series I solder type (MS310*) as well as the MIL-DTL- 83723 Series II (USAF) crimp type and MIL-DTL-5015 Series II Front Release (MS340*).

Features and Benefits

• Self-locking plug eliminates the need for lockwiring
• A single, expendable plastic tool is used for both insertion and removal of contacts
• Alternate insert clocking positions aid in mating of adjacent connectors having identical insert arrangement
• Hard dielectric socket face has lead-in chamfers for positive alignment of pins (even partially bent within pre-established limits) with sockets
• Raised moisture barriers around each pin, which mate into lead-in chamfers of hard face socket insert, provide individual contact sealing. Interfacial seals are never touched by service tools
• Sealing over a wide range of wire diameters is assured by a triple wire seal in each cavity at the rear of the connector
• Rear release crimp contact system features a stamped beryllium-copper retaining clip captivated by molded-in shoulders of each contact cavity in the insulator. A rear-inserted M81969 plastic tool expands the tines beyond the shoulder, releasing the contact
